bathroom remodel project by RENOVA Contractors

Bellevue / 2025

Bellevue Guest Bathroom Remodel

Compact footprint, full wet-room discipline, and a warm modern finish palette.

Homeowner Story

The problem, the plan, and the part you actually feel every day

Pretty photos matter, but homeowners hire us because the layout, waterproofing, plumbing, electrical, and finish sequencing all have to work together after we leave.

What the homeowner was trying to solve

The window and niche were the two details that could not be treated casually. Both interrupt the waterproof field. Both need slope, sealed transitions, and clean tile layout. The rest of the room was tight as well: glass clearance, towel ring, switches, GFCI, toilet paper holder, faucet centerline, and mirror height all had to fit without the bathroom feeling crowded.

What had to happen behind the walls

We kept the finish language simple and let the tile do most of the work. Green-gray vertical tile gives the shower depth; warm white vertical tile around the vanity keeps light moving through the room. Matte-black hardware repeats just enough to feel intentional. Behind the finish, the specification would be a bonded waterproofing assembly such as Schluter Kerdi, Wedi, GoBoard, or equivalent, with a sloped niche shelf, treated window returns, flexible sealant at plane changes, and GFCI/ventilation checks before close-up.

How the finished space works now

The finished bath feels calm, warm, and built rather than decorated. The vertical tile adds height, the frosted window brings daylight without exposing the room, and the vanity gives the space some softness. Black fixtures add contrast, but they do not take over. For a similar Bellevue scope, the cost is driven less by square footage and more by waterproofing, tile labor, glass, plumbing condition, window detailing, and inspection-ready electrical work.

Project Story

Photos that show more than a pretty angle

Wide shots sell the feeling. Rough-in and detail shots build trust because they show the work homeowners usually never see.

bathroom project detail 1

Finished room context

bathroom project detail 2

Rough-in and hidden work proof

bathroom project detail 3

Tile, fixture, and finish coordination

bathroom project detail 4

Close-up detail homeowners actually notice

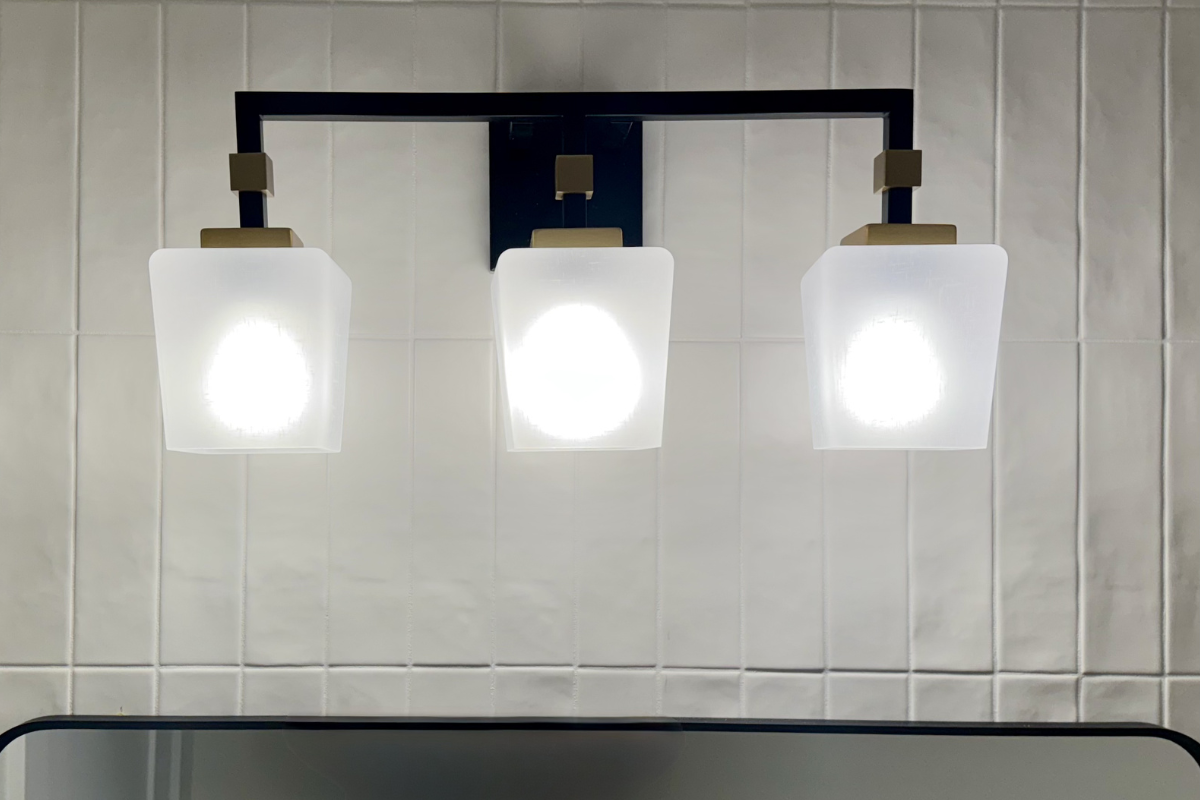

bathroom project detail 5

Final angle and usable space check

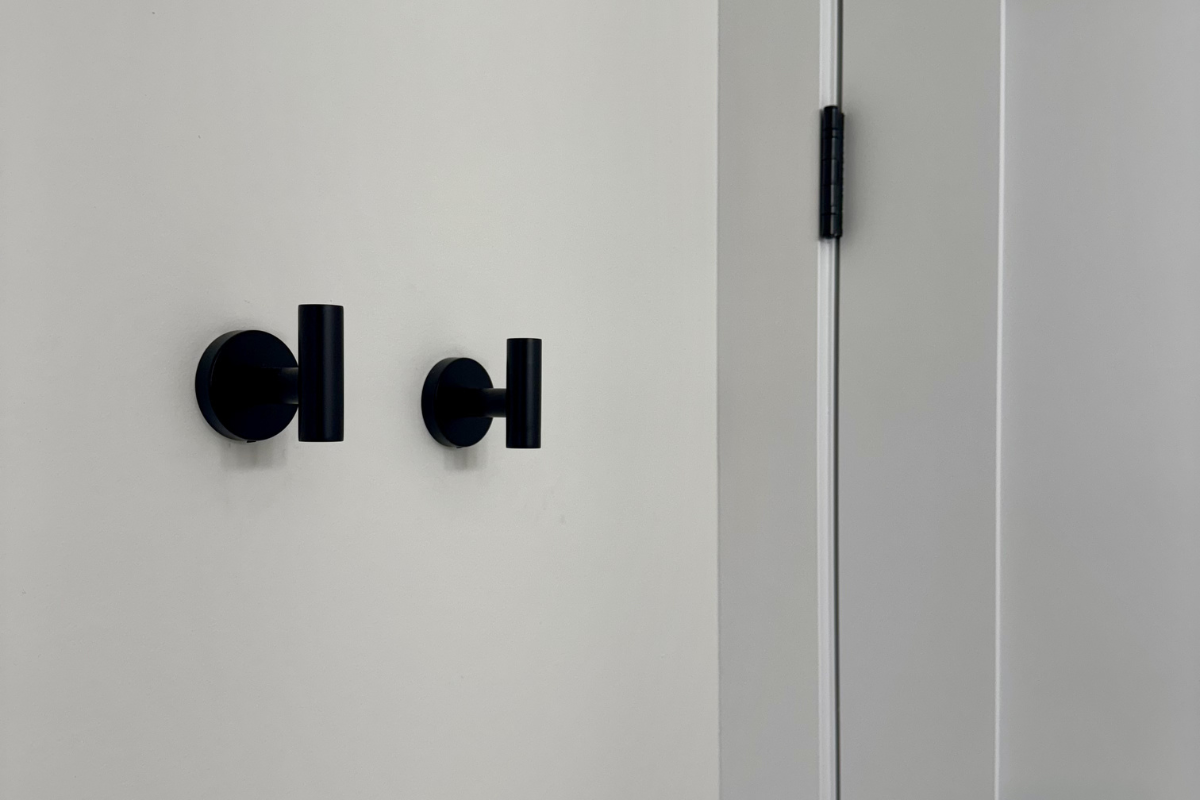

bathroom project detail 6

Craftsmanship detail

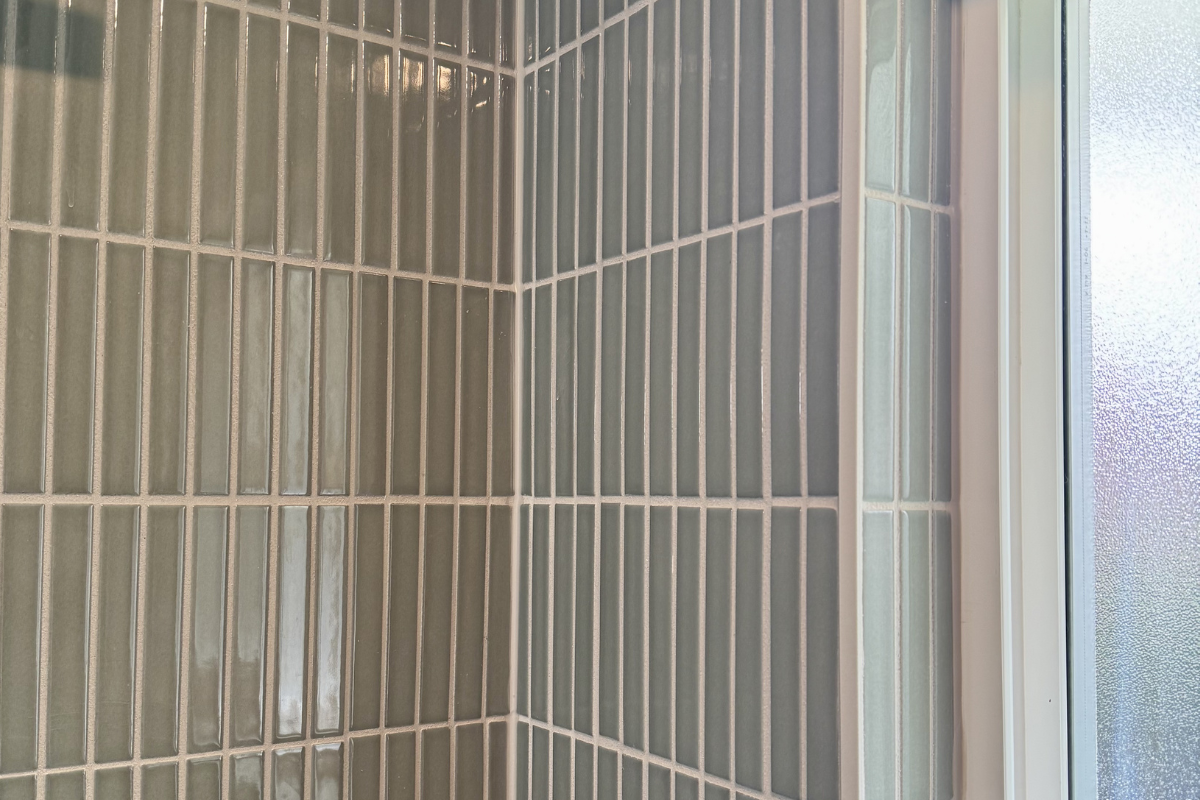

bathroom project detail 7

Project detail 7

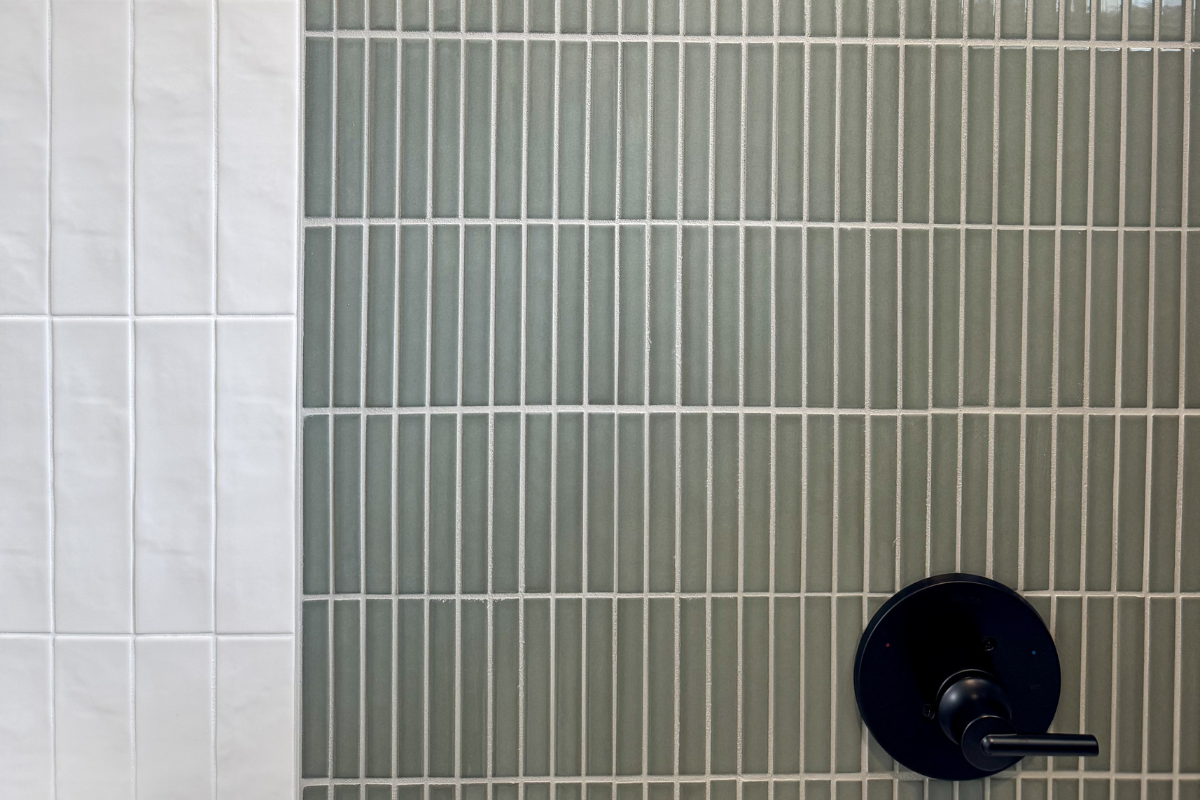

bathroom project detail 8

Project detail 8

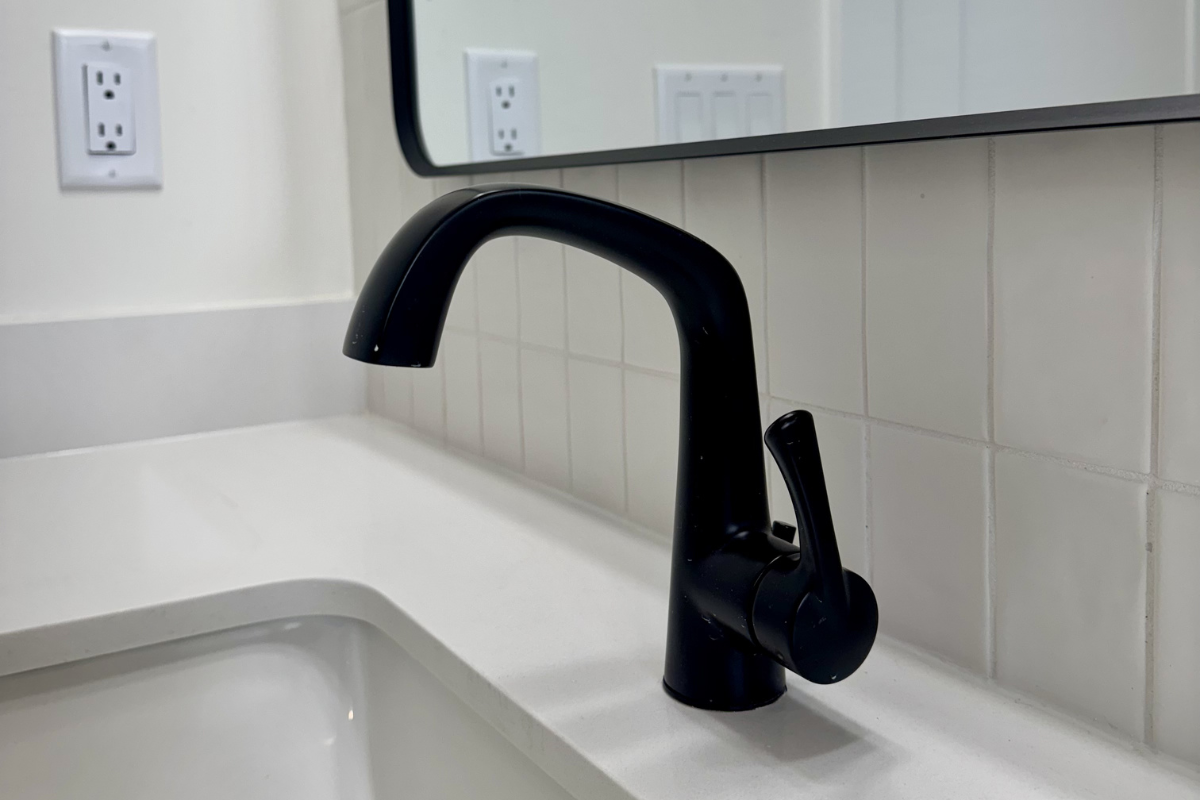

bathroom project detail 9

Project detail 9

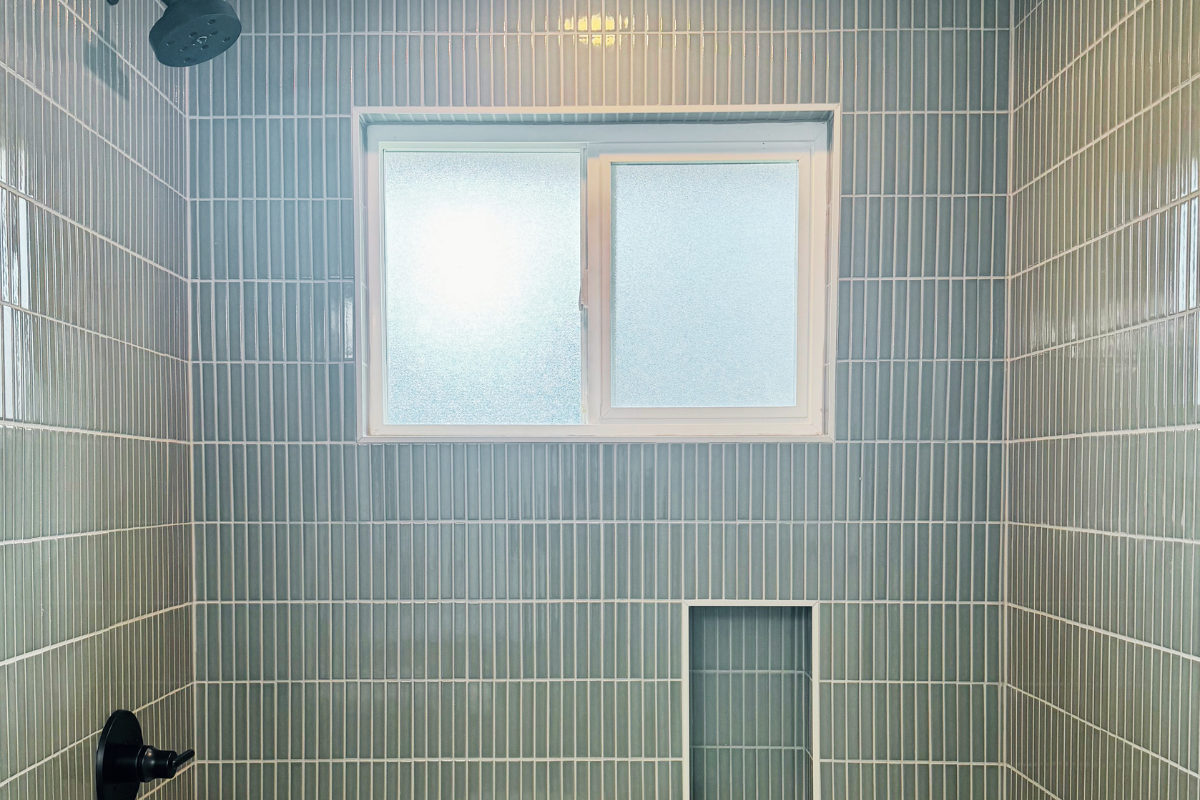

bathroom project detail 10

Project detail 10

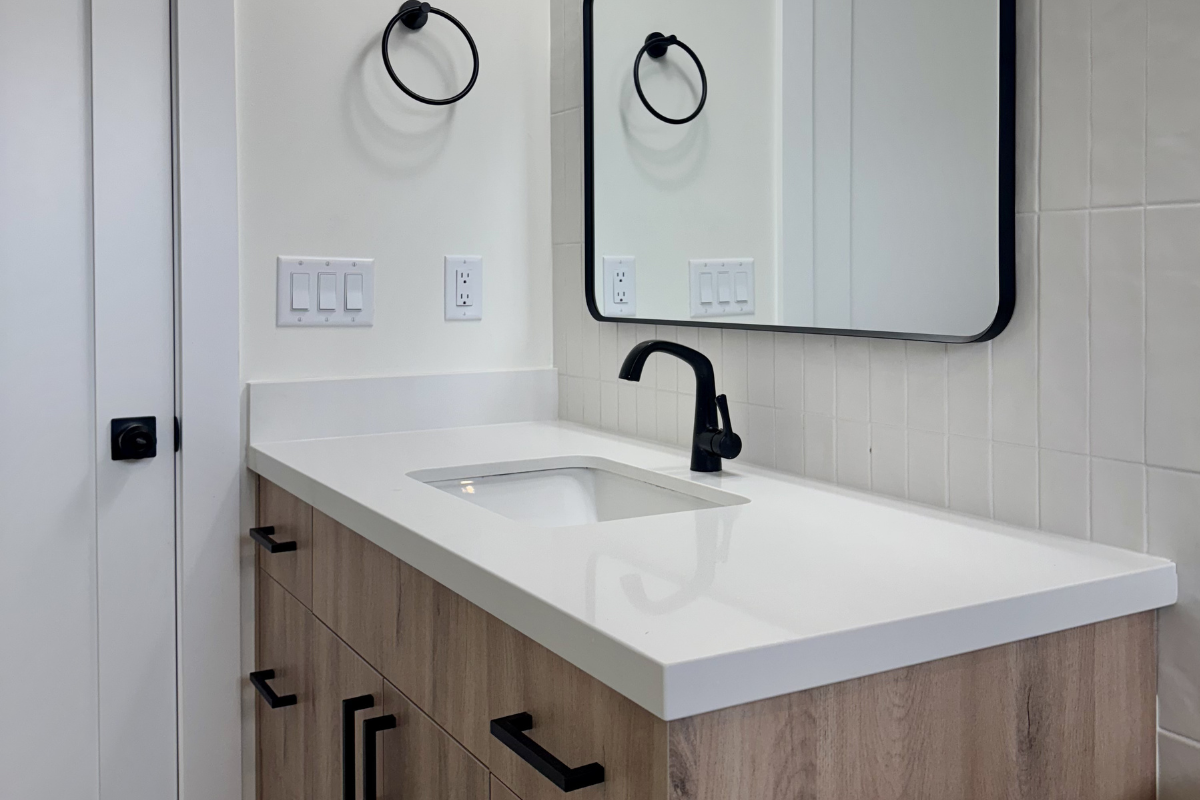

bathroom project detail 11

Project detail 11

Materials Used

Finish choices and construction details that matter

Homeowners do not just buy tile and fixtures. They buy the way those choices hold up to steam, water, daily cleaning, tight clearances, and Seattle house quirks.

Green-gray vertical shower wall tile

Tile / bathroom wall tile

Closest visual read: glazed ceramic with a handmade or stacked-tile character, similar in feel to Bedrosians Cloe, Daltile Remedy, MSI Renzo, or TileBar Montauk-type lines. Exact SKU would need supplier paperwork.

Warm white vertical vanity and shower-entry tile

Tile / ceramic wall tile

Looks like a glossy white ceramic wall tile with slight surface variation. A substitute would be selected by edge profile, glaze movement, and grout-joint tolerance, not by color alone.

Wood-look vanity cabinet

Cabinets / bathroom vanity

Reads as light oak or a natural wood-look slab vanity with black pulls. For a comparable spec, the cabinet box matters as much as the face: moisture-resistant construction, stable drawer hardware, and a finish that will not swell in a bath environment.

White vanity countertop and integrated backsplash

Stone / quartz or solid surface

The top reads as quartz, cultured stone, or solid surface. A comparable Bellevue-grade choice would be a low-porosity white slab with an undermount sink, eased edges, and a short backsplash.

Matte-black plumbing and bath hardware

Plumbing fixtures / accessories

Faucet, shower trim, mirror, towel ring, hooks, pulls, and glass hardware all stay in the matte-black family. Comparable lines include Delta Trinsic, Kohler Components, Moen Align, or another finish-matched package.

Frameless shower glass

Shower glass / custom enclosure

This should be field-measured after tile is complete. The comparable spec is tempered frameless glass with matte-black hardware, ordered after final wall planes and openings are verified.

Selection note

These visible selections were not sourced through the RENOVA catalog. The same design direction can still be built from comparable catalog categories: ceramic wall tile, quartz or solid-surface tops, bath vanities, and finish-matched matte-black hardware.

Deeper Construction Notes

The details behind the finished photos

For homeowners comparing similar remodels, this is where the budget and schedule start to make sense: rough-in, waterproofing, sequencing, and the hidden work that protects the finished room.

Technical Notes on This Bellevue Bathroom Remodel

Small bathrooms punish vague planning. There is not much room to hide a bad layout, an uneven tile cut, a poorly centered fixture, or a glass panel that lands half an inch off where it should. This Bellevue bath keeps the design language narrow, which is the right call. Green-gray vertical tile carries the shower. White tile brightens the vanity wall. Black hardware ties the pieces together. Wood warms it back up.

The shower is the build-critical zone. Vertical ceramic tile can look simple, but it exposes the wall plane quickly. If the substrate bows, every grout joint tells on it. Before tile, the framing and backer surface need to be checked, flattened where needed, and waterproofed as one continuous assembly. Valve depth also has to be set before the wall closes; otherwise the finished trim sits proud or buried, and the problem is expensive to correct.

The window is the detail that decides whether the work is just pretty or actually durable. A shower window needs more than tile around it. The sill should pitch into the shower, returns should be waterproofed, and changes of plane need the correct flexible sealant. Frosted glass handles privacy. It does not handle water. That part belongs to the waterproofing system.

The niche is another place where clean photos can hide real coordination. It has to land in a useful position, avoid awkward cuts, drain properly, and stay inside the waterproof field. Matching the niche tile to the field tile was a smart move here. In a room this size, a contrast niche would have added noise without improving the space.

On the vanity side, the wood-look cabinet and white top keep the room from going cold. The black faucet, mirror frame, towel ring, hooks, pulls, shower trim, and glass hardware all stay in one finish family. That repetition matters. Matte black from five unrelated brands can look slightly different under task lighting, so on a cleaner project we prefer to group selections early and verify finish samples before ordering.

Budget-wise, this kind of Bellevue bath is not priced by square footage alone. Tile labor, waterproofing, the window return, glass measurement, plumbing condition, fan performance, GFCI protection, and finish lead times all matter. The room is compact. The details are not.
