Americano Shaker S1 - All-Wood Full Overlay Mortise-Tenon Construction

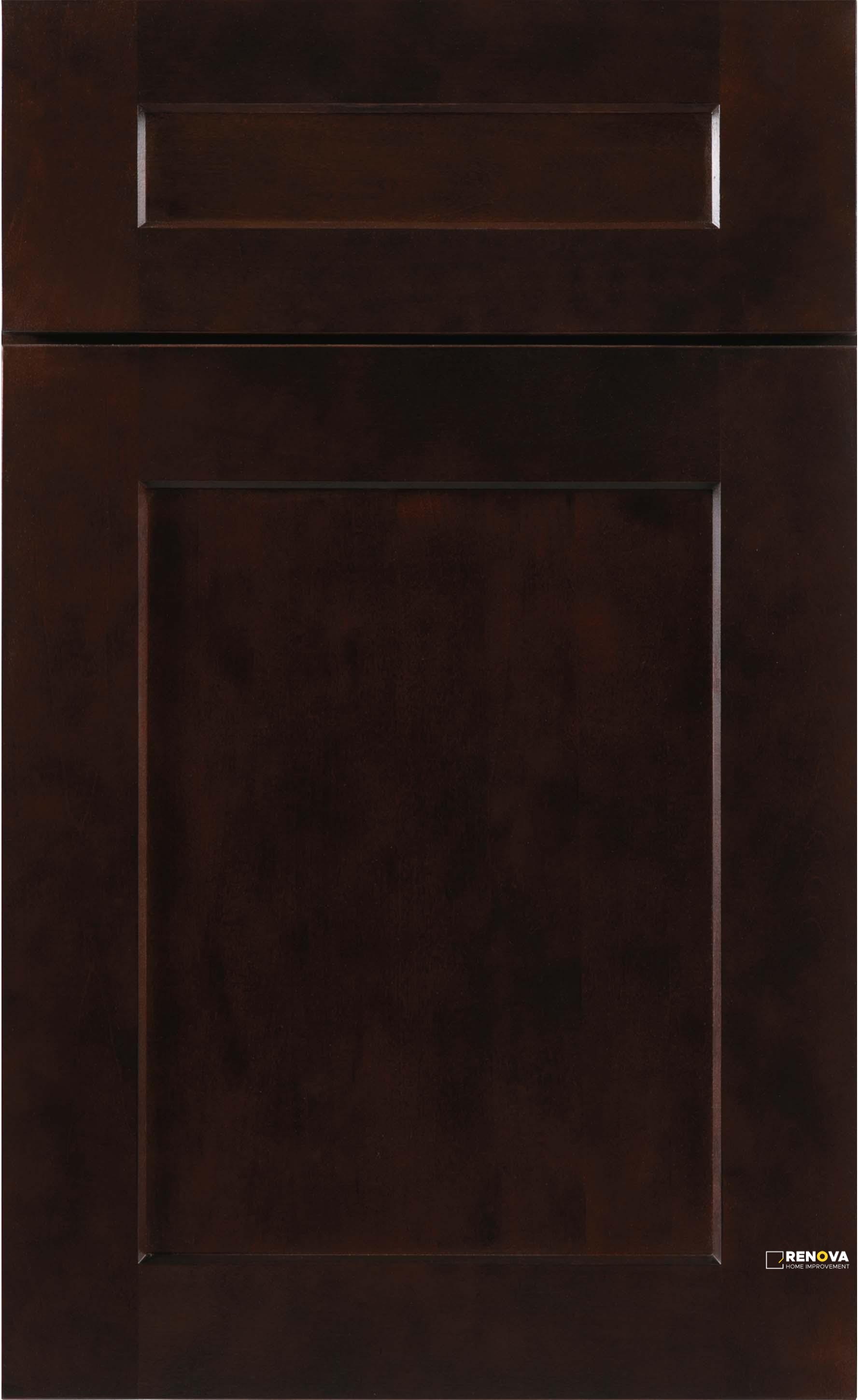

All-wood shaker cabinet doors with full overlay
Technical Specifications
Door and drawer fronts: All-wood construction, 3/4-inch thickness, full overlay design, joined with mortise-tenon and/or dowel methods. Frame: All-wood, 3/4-inch thick, assembled with dowel joints, dadoed for panel fit. Cabinet box: Plywood, 5/8-inch thick sides, clear coat interior finish. Drawer box: All-wood, 5/8-inch thick four sides, dovetail joinery, clear coat finish. Shelves: Plywood, 3/4-inch thick, adjustable positioning, clear coat, 3/4 cabinet depth. Hardware integration: Full extension under-mounted soft-close glides, 6-way adjustable concealed soft-close hinges, rubber door bumpers for quiet closure, L-shaped metal brackets for base cabinet reinforcement.
Application & Performance

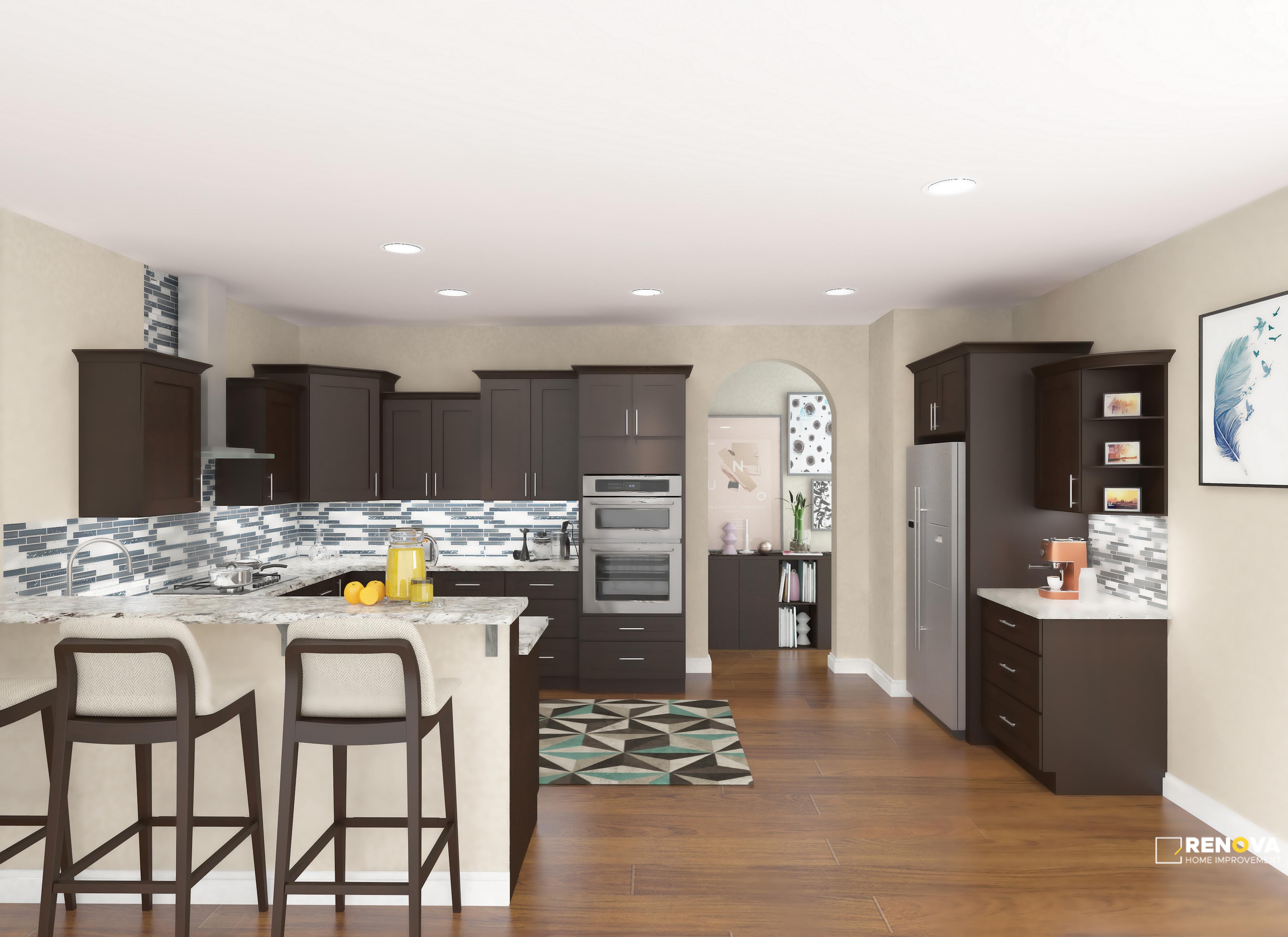

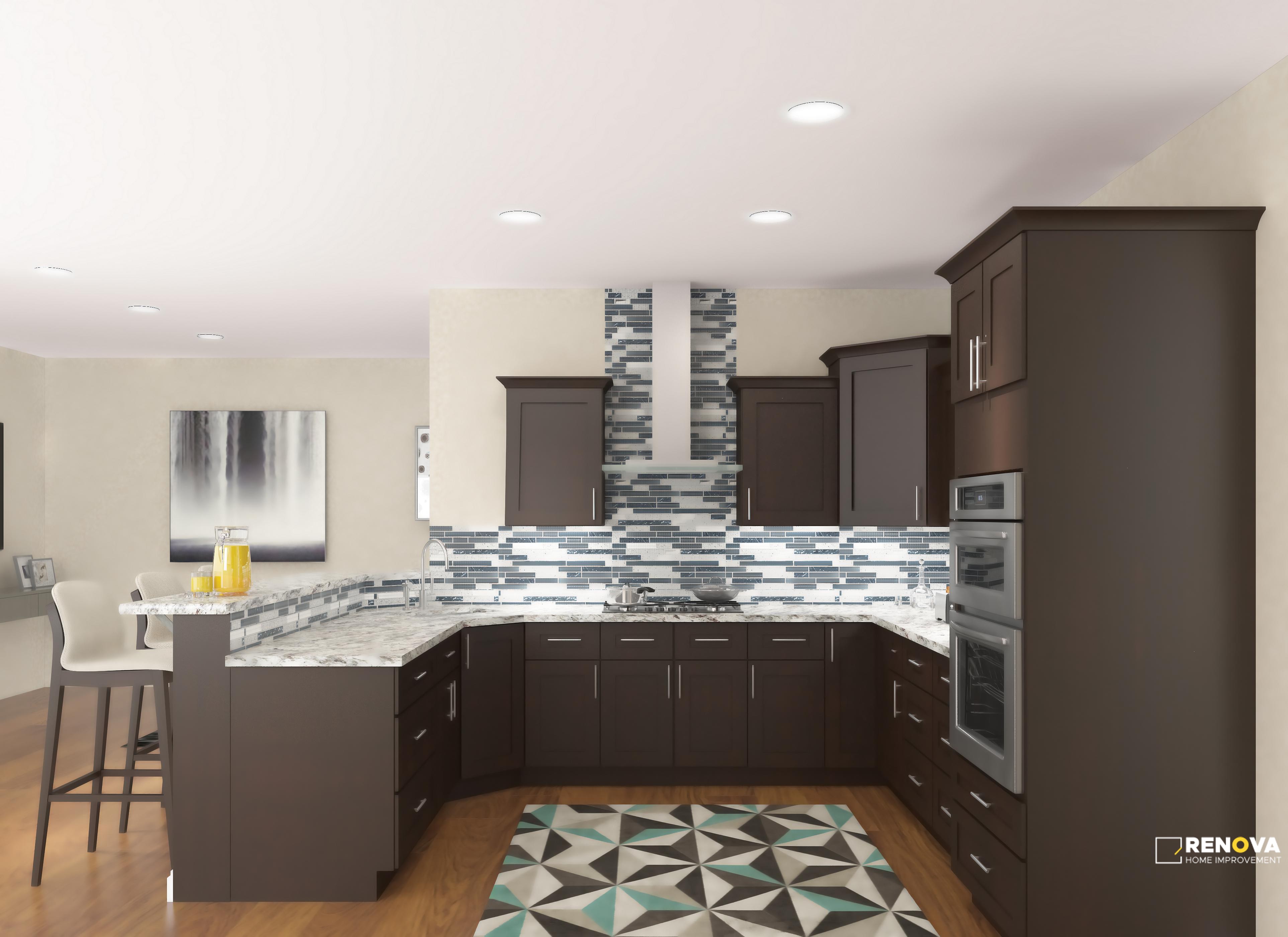

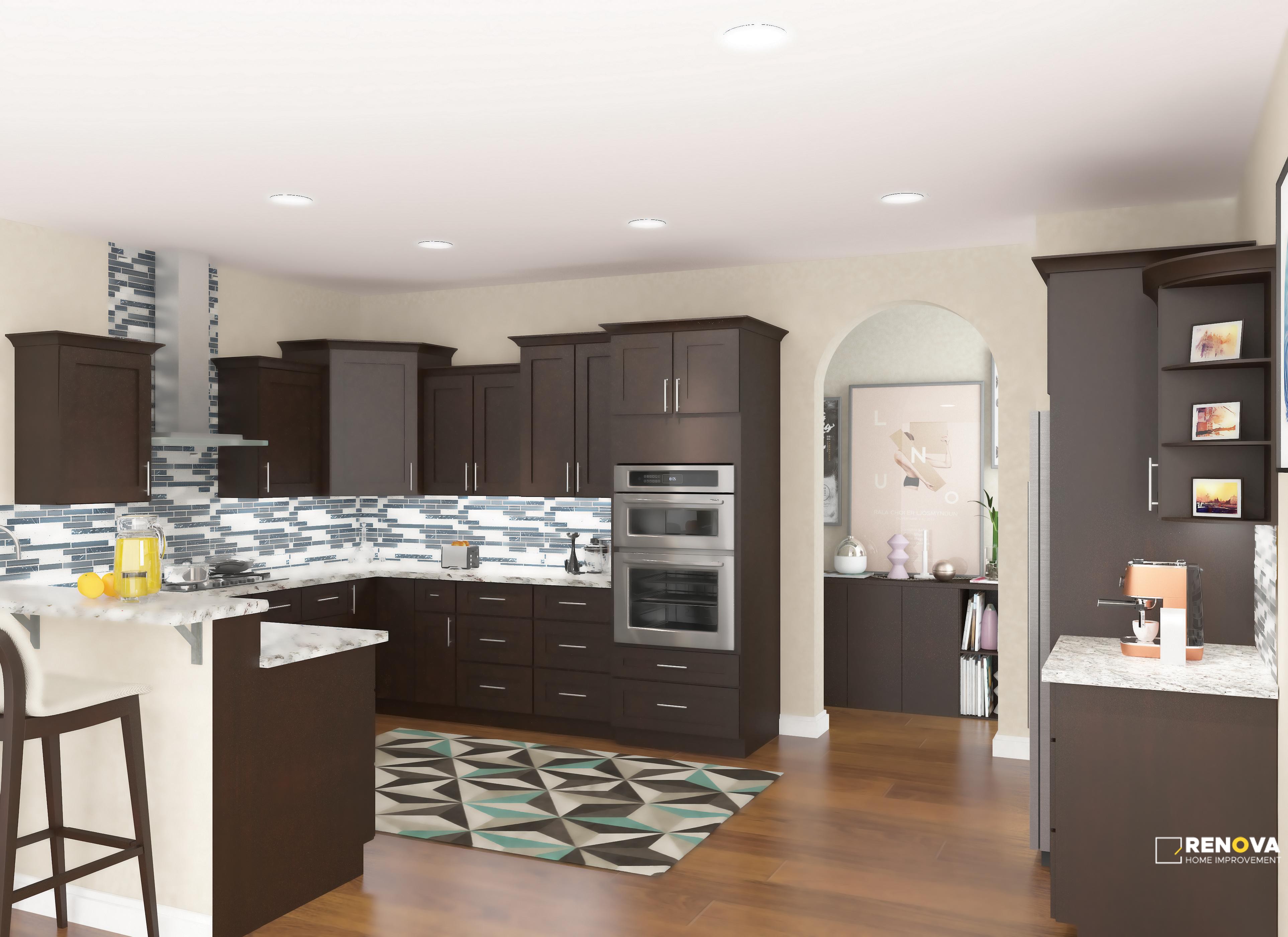

Suitable for kitchen base, wall, and tall cabinet installations. 3/4-inch plywood shelves support up to 75 lbs per shelf at 3/4 depth. Dovetail drawer boxes resist racking under 50 lbs load. Soft-close glides and hinges reduce slam impact by 90%. All-wood components limit expansion to 0.1% in 90% RH environments. Dadoed frames prevent panel float. Rubber bumpers eliminate door rattle. L-brackets provide wall anchorage for seismic zones.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | S1 |
| Door & Drawer | All-wood, 3/4\" thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4\" thick, dowel joint, dadoed |
| Glide | Full extension, soft-close, under-mounted |
| Shelf | Plywood, 3/4\" thick, adjustable, clear coat, 3/4 depth |
| Hinge | 6-way adjustable, soft-close, hidden |
| Cabinet Box | Plywood, 5/8\" thick, clear coat interior |
| Drawer Box | All-wood, 5/8\" thick 4 sides, dovetail, clear coat |
| Bracket | L-shaped metal for base cabinets |
| Door Bumper | Rubber, quiet-closing |
