Bright White Shaker S8 - All-Wood Full Overlay - cabinets

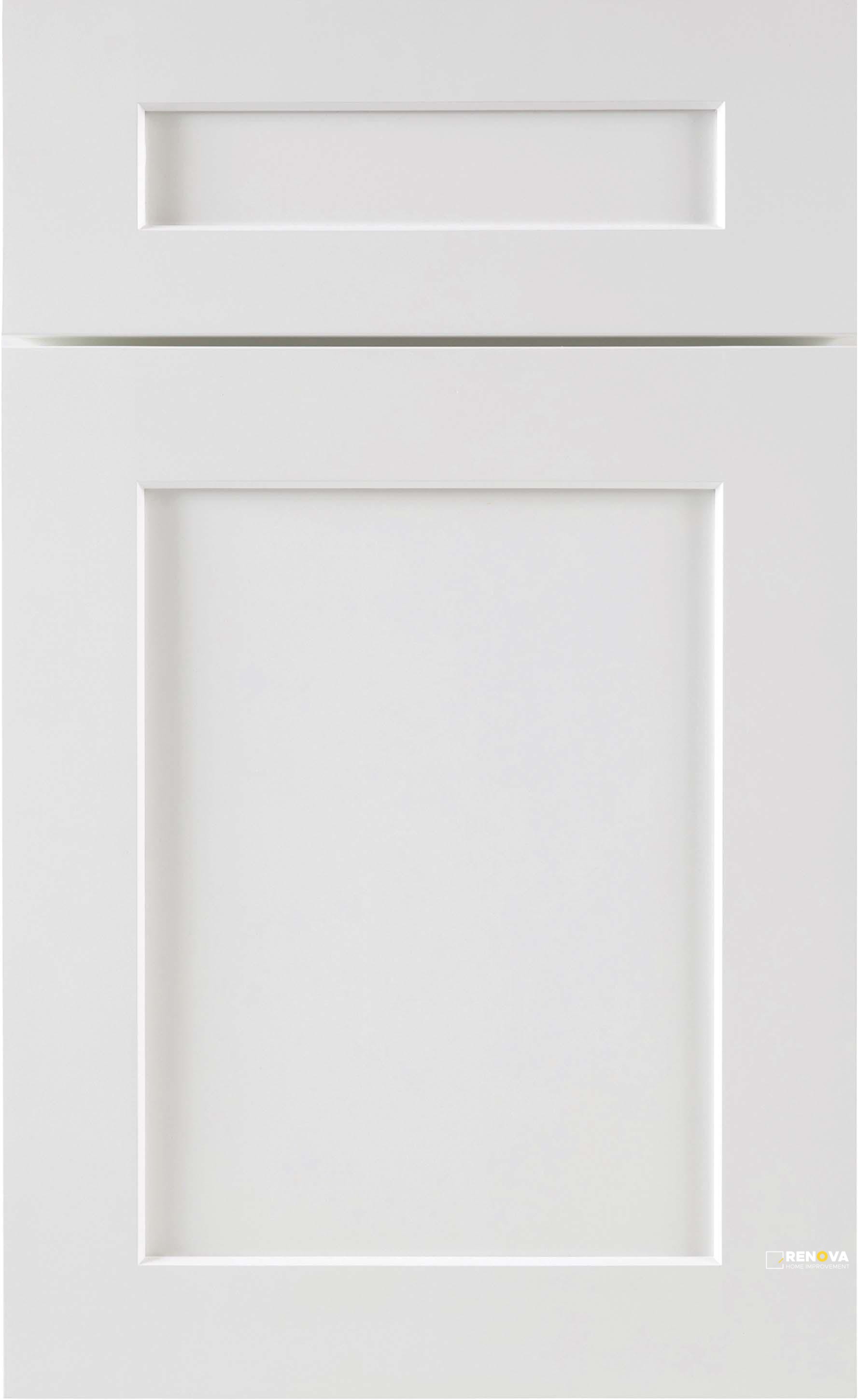

All-wood shaker cabinet doors with full overlay
Technical Specifications
Door and drawer fronts: All-wood construction, 3/4-inch thick, full overlay design. Joints secured by mortise-tenon or dowel methods. Frame: All-wood, 3/4-inch thick, assembled with dowel joints, dadoed for panel fit. Cabinet box: Plywood, 5/8-inch thick with clear coat interior finish. Drawer box: All-wood, 5/8-inch thick four sides, dovetail joinery, clear coat. Shelves: Plywood, 3/4-inch thick, adjustable, clear coated, 3/4 depth. Hardware integration: Full extension under-mounted soft-close glides, 6-way adjustable concealed soft-close hinges, rubber door bumpers for quiet closure, L-shaped metal brackets for base cabinet reinforcement.
Application & Performance
Suitable for kitchen base, wall, and tall cabinet installations. 3/4-inch plywood shelves support up to 75 lbs per shelf when adjustable. Dovetail drawer joints resist separation under 50 lbs load. Soft-close mechanisms reduce slam impact by 90%. Mortise-tenon and dowel joints maintain alignment after 10,000 open-close cycles. Plywood box with clear coat interior resists moisture absorption in standard humidity. Dadoed frames prevent panel racking. Rubber bumpers eliminate door bang noise.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | S8 |
| Door & Drawer Fronts | All-wood, 3/4\" thick, full overlay, mortise-tenon or dowel joints |
| Frame | All-wood, 3/4\" thick, dowel joint, dadoed |
| Cabinet Box | Plywood, 5/8\" thick, clear coat interior |
| Drawer Box | All-wood, 5/8\" thick 4 sides, dovetail, clear coat |
| Shelf | Plywood, 3/4\" thick, adjustable, clear coat, 3/4 depth |
| Glide | Full extension, soft-close, under-mounted |
| Hinge | 6-way adjustable, soft-close, hidden |
| Bracket | L-shaped metal for base cabinets |
| Door Bumper | Rubber, quiet-closing |
