Chiffon Highlight H9 Series - All-Wood Cabinet with Mortise-Tenon Cons
All-wood cabinet with mortise-tenon joinery and soft-close hardware
Technical Specifications

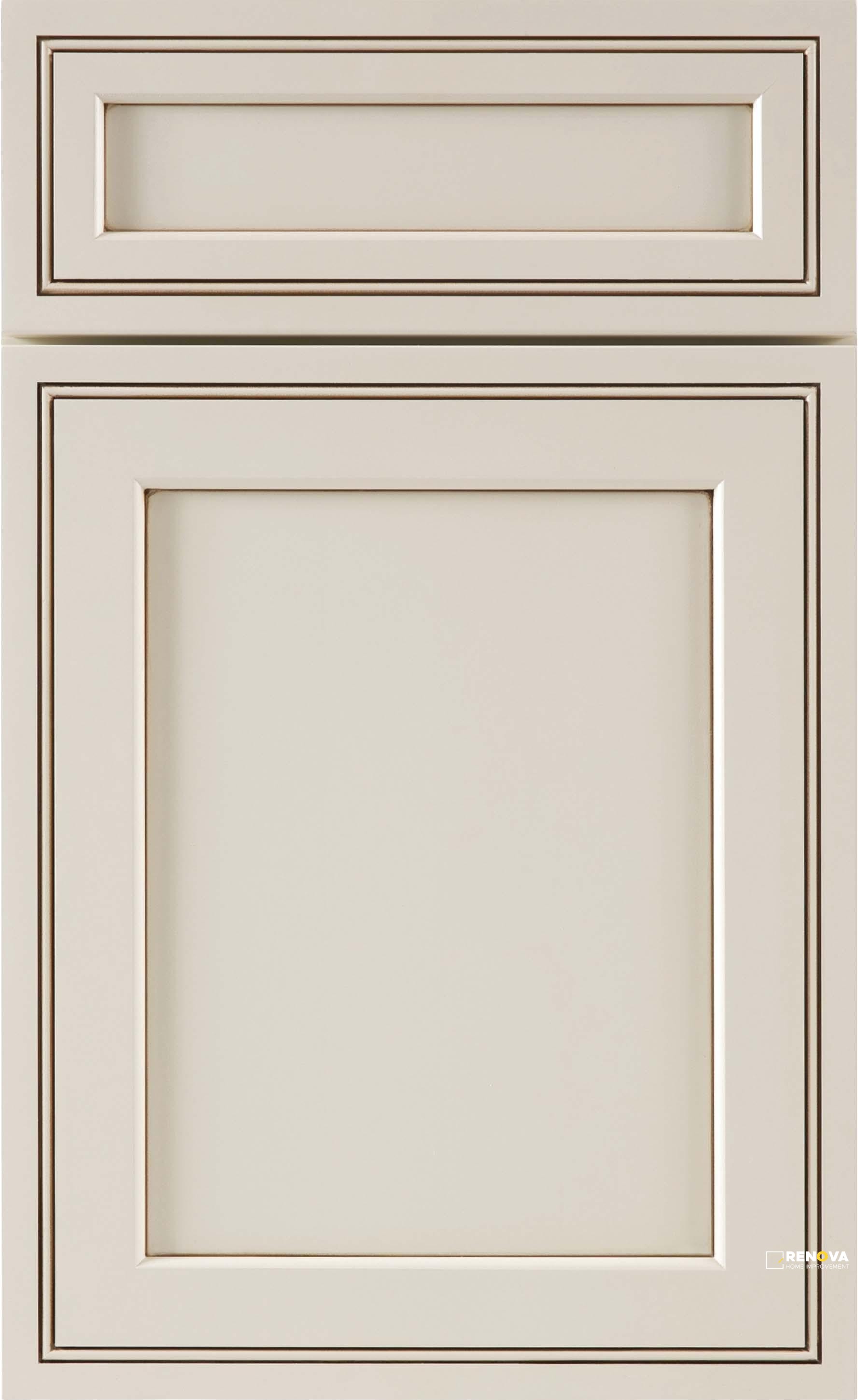

Door & Drawer Construction: All-wood, 3/4-inch thickness, full overlay configuration. Joints: mortise-tenon and/or dowel assembly.
Frame: All-wood, 3/4-inch thickness. Joinery: dowel joints with dadoed assembly.
Cabinet Box: Plywood core, 5/8-inch thickness. Interior finish: clear coat.
Drawer Box: All-wood construction, 5/8-inch thickness, four-side dovetail joinery. Interior finish: clear coat.
Hardware: Hinges are 6-way adjustable with soft-close mechanism and hidden mounting. Glides are full-extension, soft-close, under-mounted design. Door bumpers are rubber for quiet closure.
Shelving: Plywood construction, 3/4-inch thickness, adjustable with 3/4-inch depth. Clear coat finish.
Reinforcement: L-shaped metal brackets for base cabinet support.
Application & Performance
Structural Performance: Mortise-tenon joinery provides superior strength and longevity compared to dowel-only construction. Dovetail drawer boxes resist racking and handle repetitive opening/closing cycles without failure.
Moisture Resistance: Clear coat interior finish provides minimal moisture protection; suitable for standard kitchen/bathroom environments with proper ventilation. Not recommended for high-humidity or wet areas without additional sealing.
Load Capacity: All-wood frame and plywood shelving support standard cabinet loads. Metal bracket reinforcement on base units accommodates countertop weight and appliance installation.
Operational Durability: Full-extension soft-close glides and hinges reduce impact stress. Soft-close mechanisms extend hardware lifespan by dampening closure force.

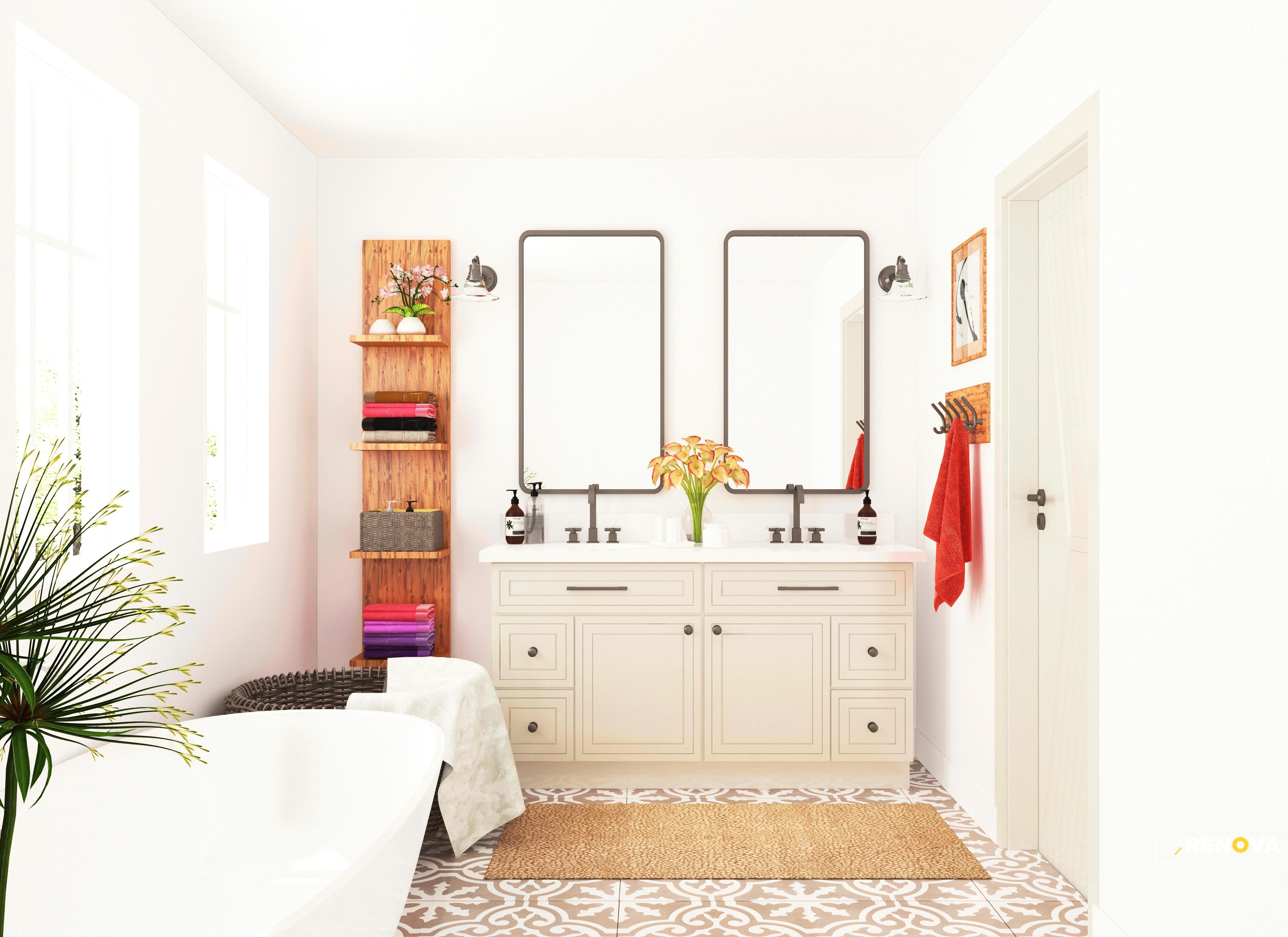

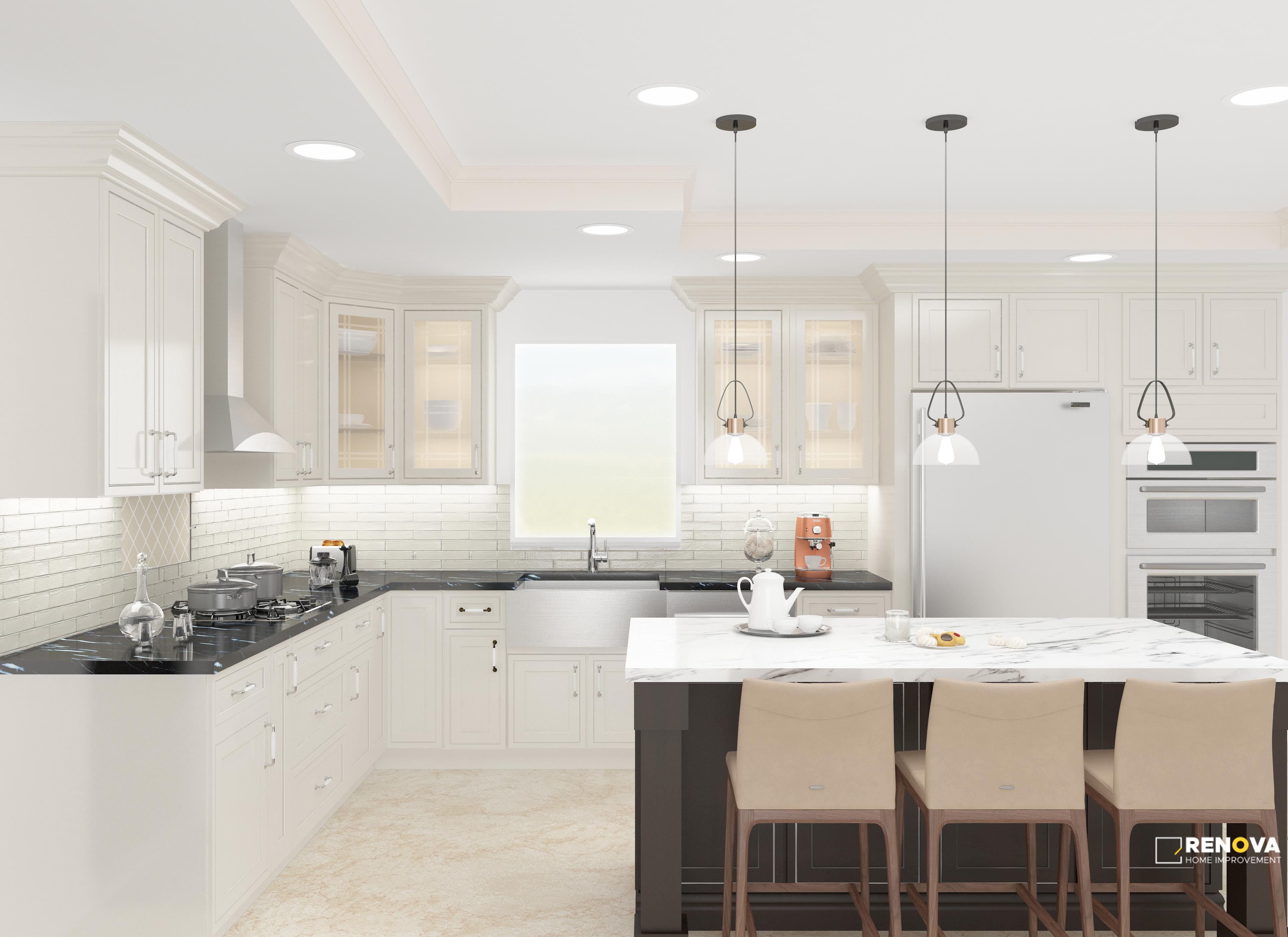

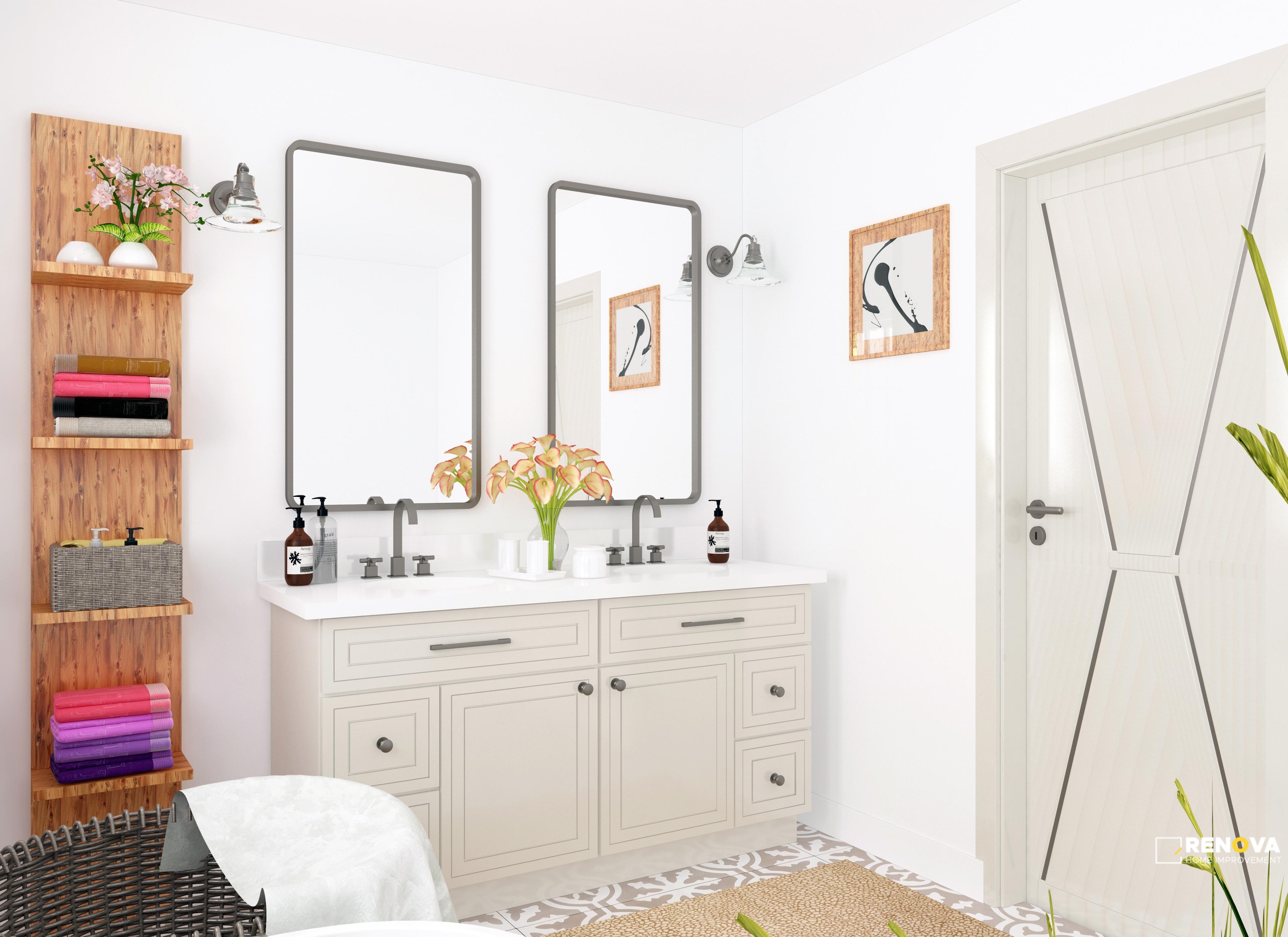

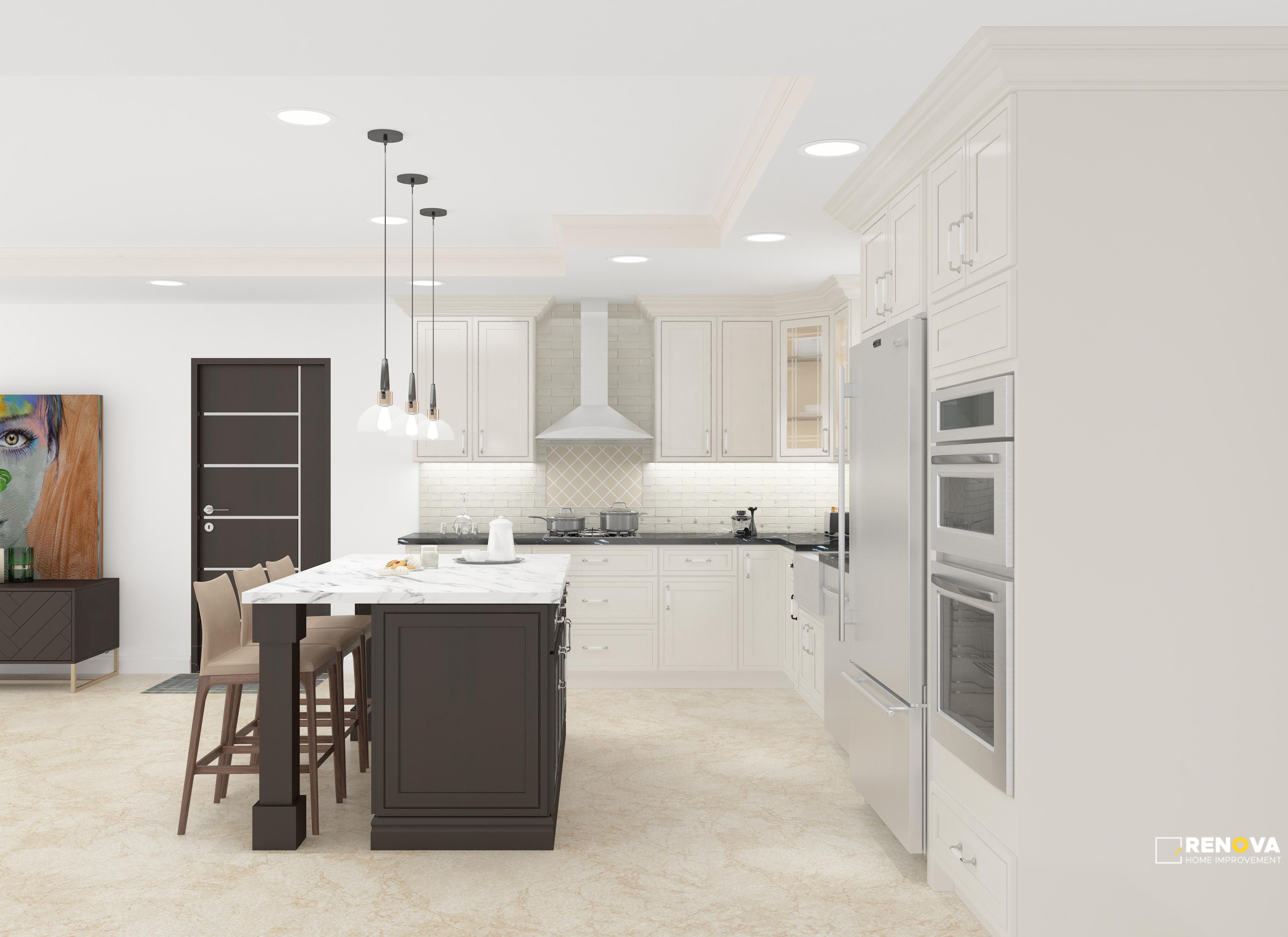

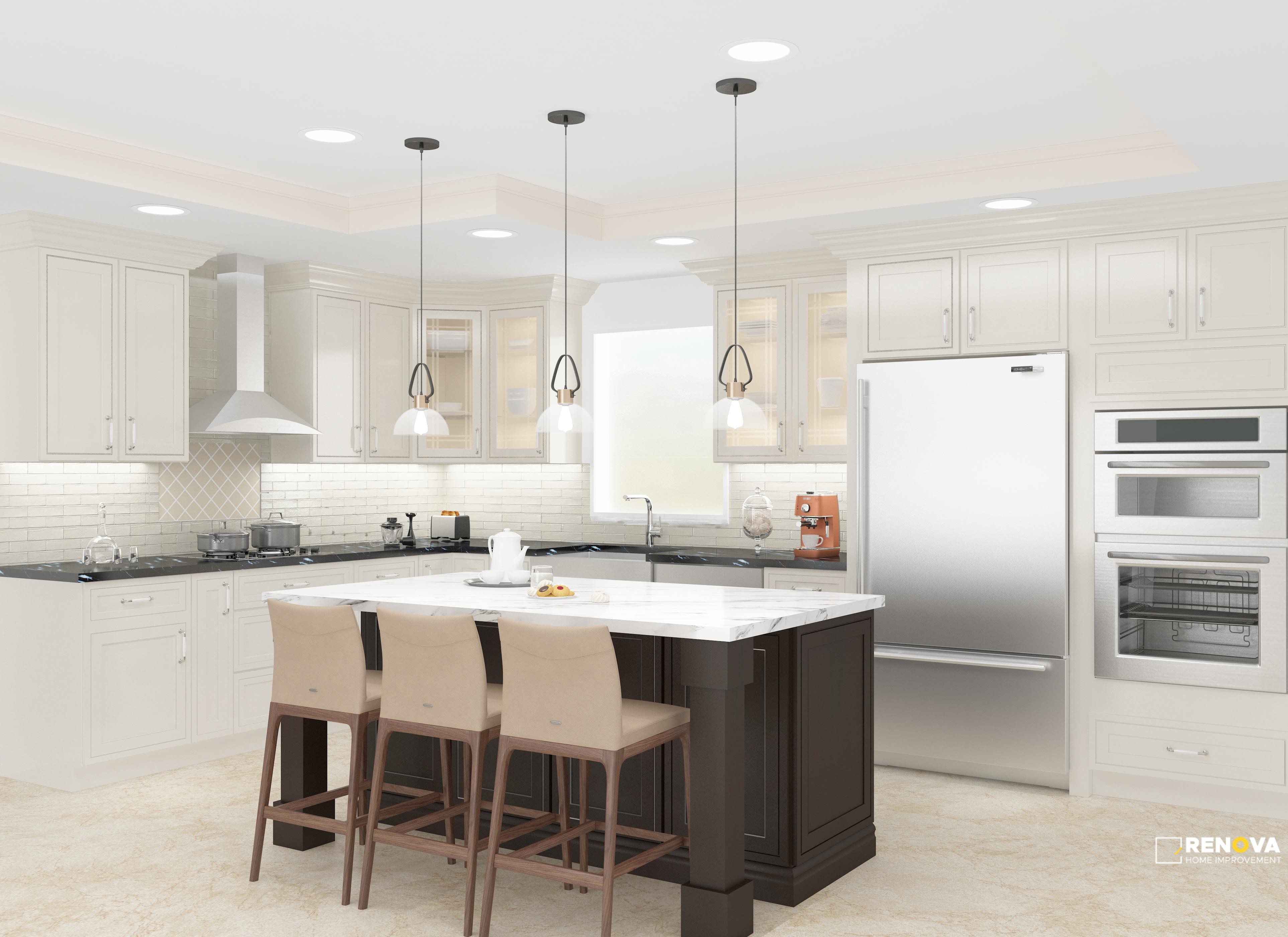

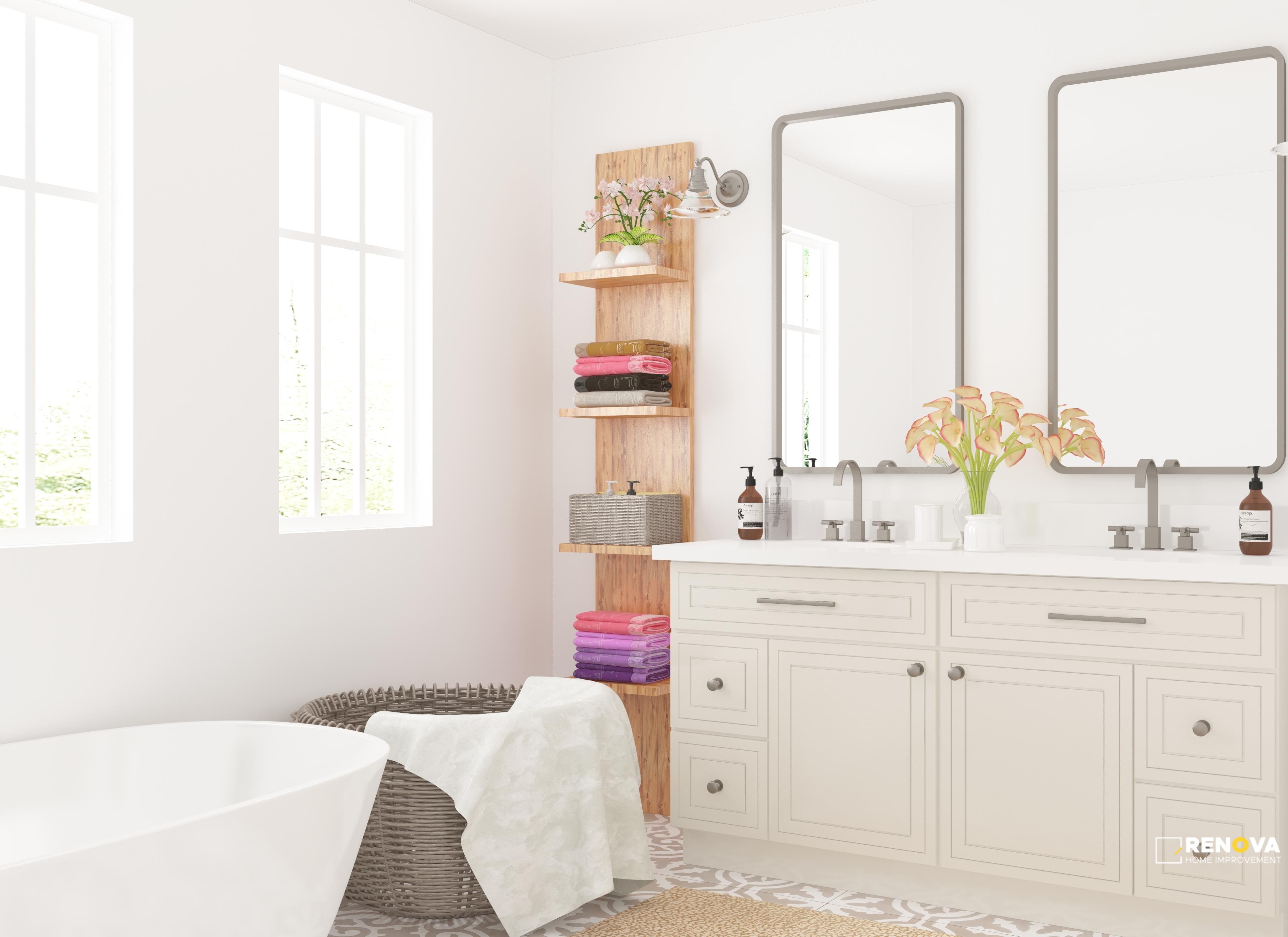

Suitable Applications: Kitchen cabinetry, bathroom vanities, built-in storage. Adjustable shelving accommodates variable storage heights.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | H9 |
| Door/Drawer Material | All-wood, 3/4" thickness |
| Door/Drawer Joinery | Mortise-tenon and/or dowel |
| Door Overlay | Full overlay |
| Frame Material | All-wood, 3/4" thickness |
| Frame Joinery | Dowel joint, dadoed |
| Cabinet Box Material | Plywood, 5/8" thickness |
| Cabinet Box Finish | Clear coat |
| Drawer Box Material | All-wood, 5/8" thickness |
| Drawer Box Joinery | Dovetail, 4-sided |
| Drawer Box Finish | Clear coat |
| Shelf Material | Plywood, 3/4" thickness |
| Shelf Depth | 3/4 inch |
| Shelf Adjustment | Adjustable |
| Shelf Finish | Clear coat |
| Hinges | 6-way adjustable, soft-close, hidden |
| Glides | Full-extension, soft-close, under-mounted |
| Door Bumpers | Rubber |
| Base Reinforcement | L-shaped metal brackets |
