LUBAN M01 Series - Chocolate Highlight - All-Wood Full Overlay Cabinet
All-wood cabinetry with mortise-tenon construction and soft-close hardware
Technical Specifications

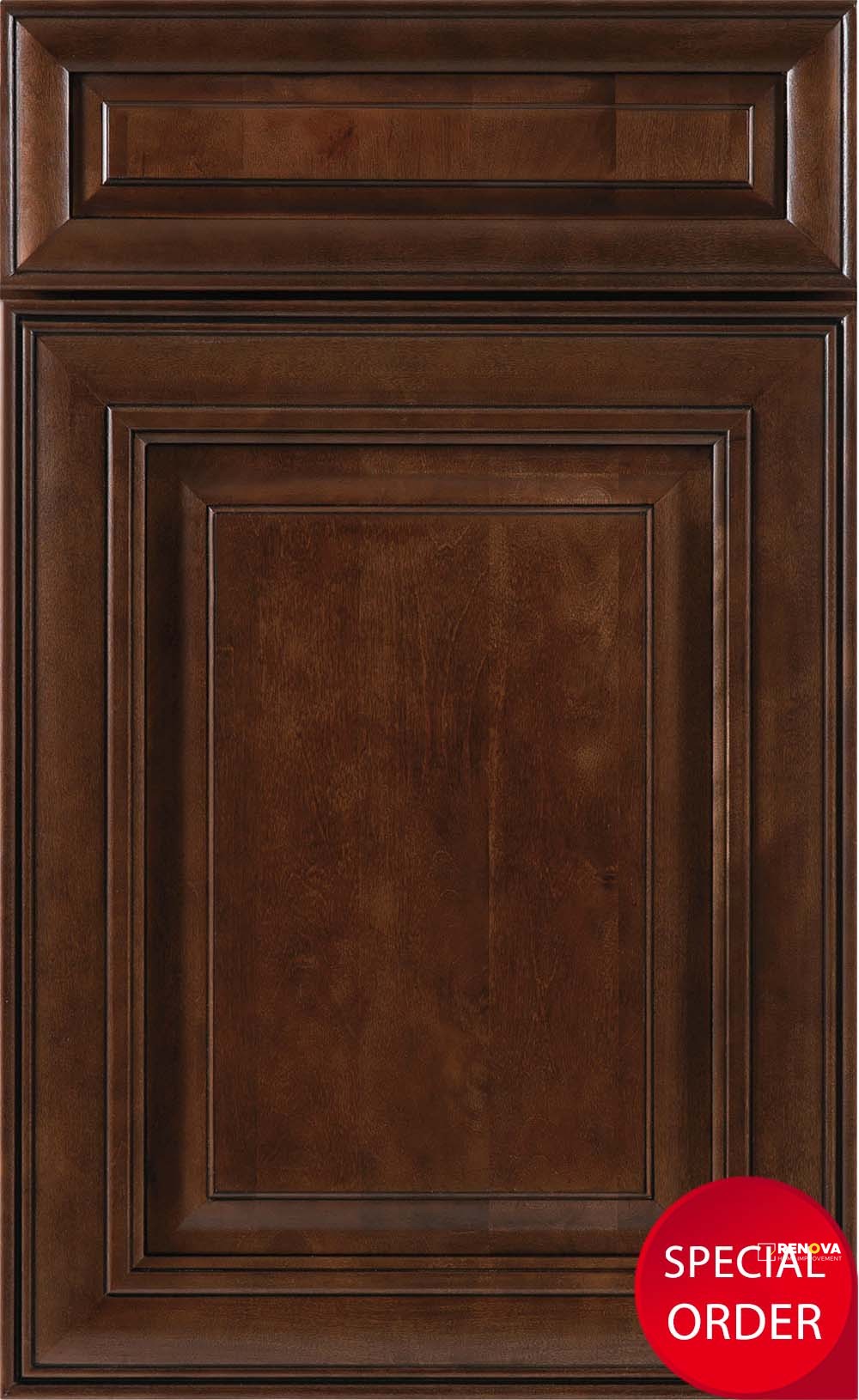

Door & Drawer Construction: All-wood, 3/4" thick, full overlay configuration. Joinery: mortise-tenon and/or dowel joints for frame and door assembly.
Frame: All-wood, 3/4" thick, dowel joinery with dadoed joints for structural rigidity.
Cabinet Box: Plywood, 5/8" thick with clear coat interior finish.
Drawer Box: All-wood, 5/8" thick on four sides with dovetail joinery and clear coat finish.
Hardware: Full-extension, soft-close, under-mounted glides. Hinges: 6-way adjustable with soft-close mechanism, hidden installation. Door bumpers: rubber, quiet-closing.
Shelving: Plywood, 3/4" thick, adjustable depth at 3/4", clear coat finish.
Reinforcement: L-shaped metal brackets for base cabinet support.
Note: Special order item. Transfer fee applies.
Application & Performance
Suitable Applications:

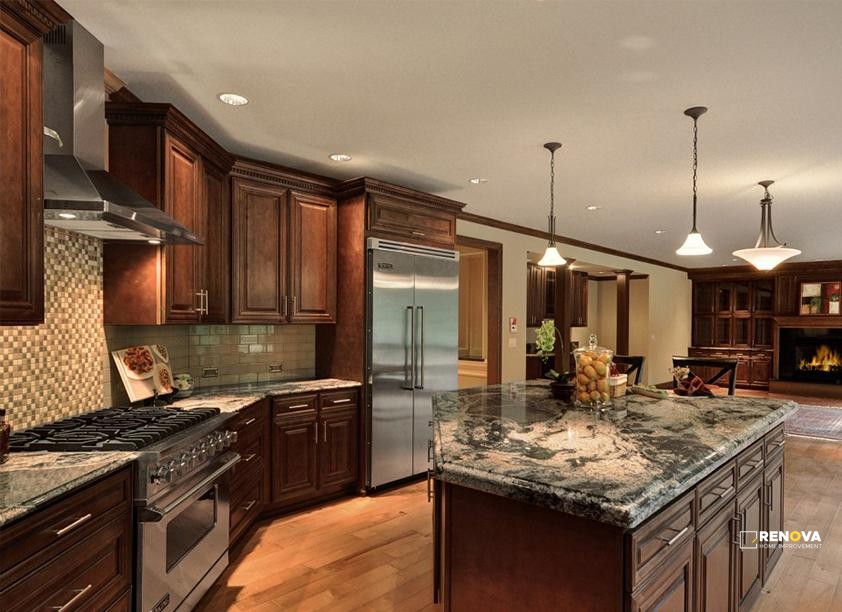

- Kitchen cabinetry in residential installations

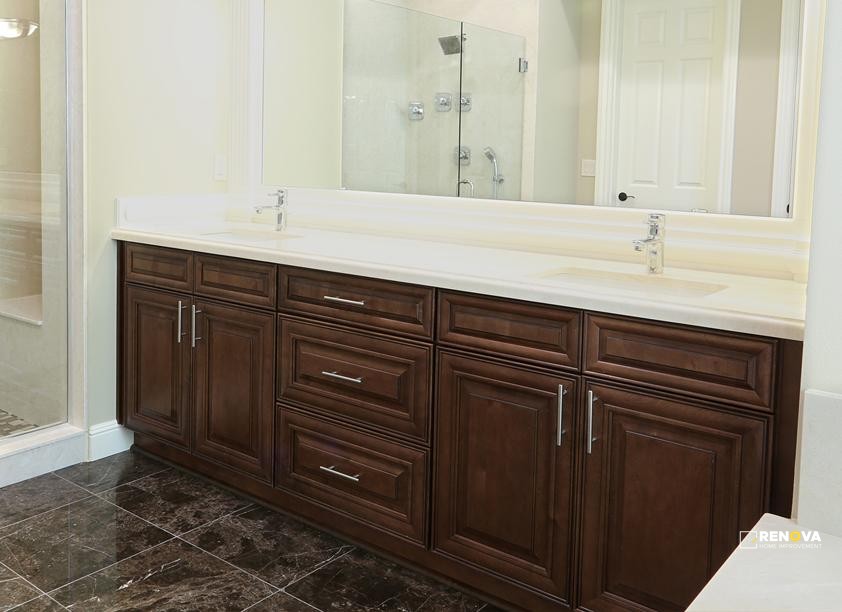

- Bathroom vanities

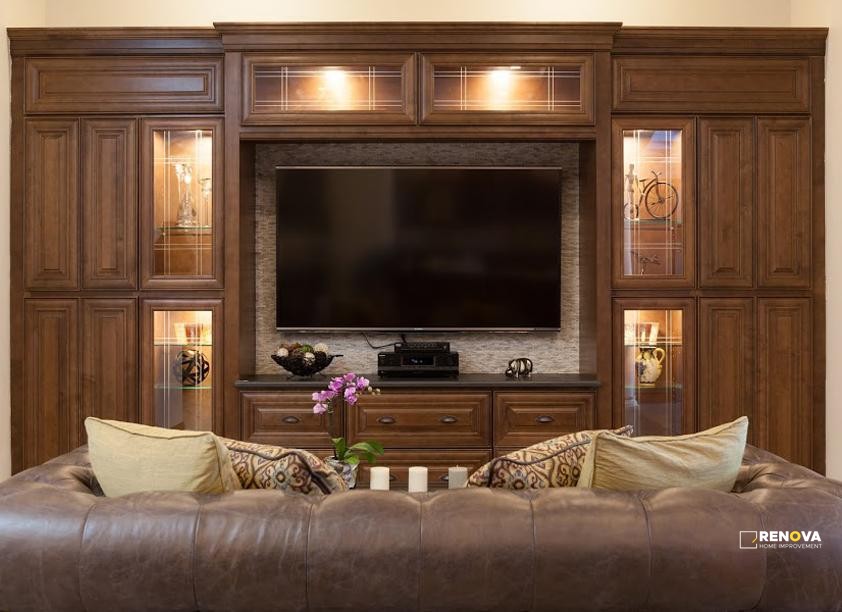

- Built-in storage and pantry systems
Performance Characteristics:
- Mortise-tenon joinery provides superior joint strength and longevity compared to dowel-only construction
- Full-extension glides allow 100% drawer accessibility
- Soft-close mechanism reduces impact stress on hinges and cabinet structure
- 6-way adjustable hinges accommodate door alignment tolerances and hinge wear over time
- Plywood shelving with adjustable supports distributes load across full shelf depth
- Metal bracket reinforcement in base cabinets handles distributed loads from countertops and appliances
- Clear coat interior and drawer finishes protect against moisture and staining
Limitations:
- Special order only; not stock item. Lead time and transfer fees apply
- Requires professional installation for proper assembly and hinge calibration
Save materials as you browse. We’ll include your saved selections when you request an estimate.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | M01 |
| Door/Drawer Material | All-wood, 3/4" thick |
| Door/Drawer Joinery | Mortise-tenon and/or dowel |
| Door Configuration | Full overlay |
| Frame Material | All-wood, 3/4" thick |
| Frame Joinery | Dowel joint, dadoed |
| Cabinet Box Material | Plywood, 5/8" thick |
| Cabinet Box Finish | Clear coat |
| Drawer Box Material | All-wood, 5/8" thick |
| Drawer Box Joinery | Dovetail |
| Drawer Box Finish | Clear coat |
| Glide Type | Full-extension, soft-close, under-mounted |
| Hinge Type | 6-way adjustable, soft-close, hidden |
| Door Bumper | Rubber, quiet-closing |
| Shelf Material | Plywood, 3/4" thick |
| Shelf Depth | 3/4" adjustable |
| Shelf Finish | Clear coat |
| Base Reinforcement | L-shaped metal brackets |
| Order Type | Special order |
| Additional Notes | Transfer fee applies |
