Cinnamon Highlight CO66 Series - All-Wood Cabinet Construction

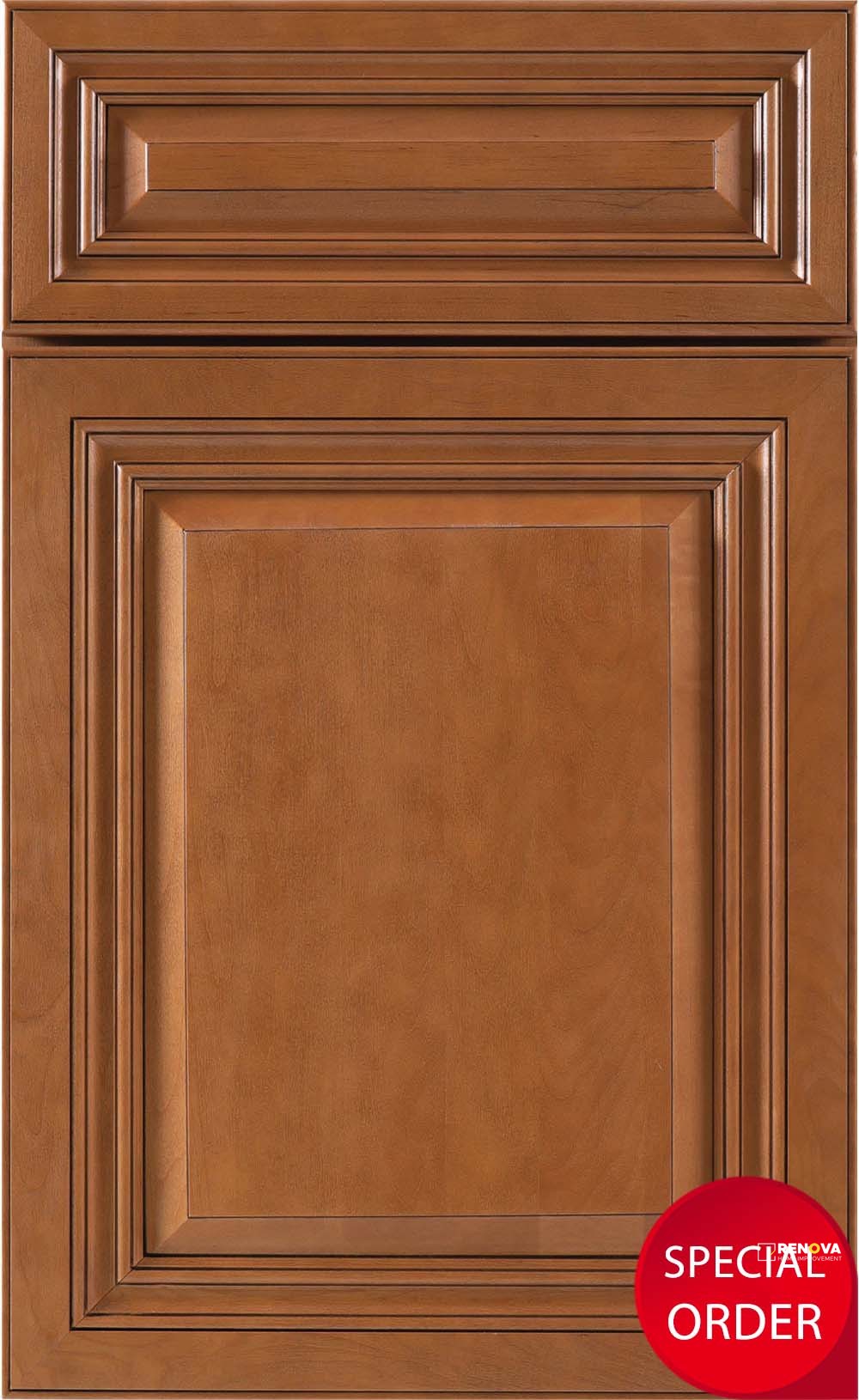

All-wood cabinet doors with mortise-tenon joinery construction
Technical Specifications
Door & Drawer Construction: All-wood, 3/4-inch thickness, full overlay profile with mortise-tenon and/or dowel joints. Dovetail drawer box construction, 5/8-inch all-wood sides with clear coat interior finish.
Frame Assembly: All-wood, 3/4-inch thickness with dowel joinery and dadoed construction for structural rigidity.
Cabinet Box: 5/8-inch plywood with clear coat interior finish. L-shaped metal bracket reinforcement installed on base cabinets.
Hardware: Full-extension, soft-close under-mounted glides. 6-way adjustable soft-close hidden hinges. Rubber door bumpers for quiet closure.
Shelving: 3/4-inch plywood with adjustable mounting and clear coat finish. 3/4-inch depth standard.
Finish: Clear coat applied to all interior surfaces and wood components.
Application & Performance

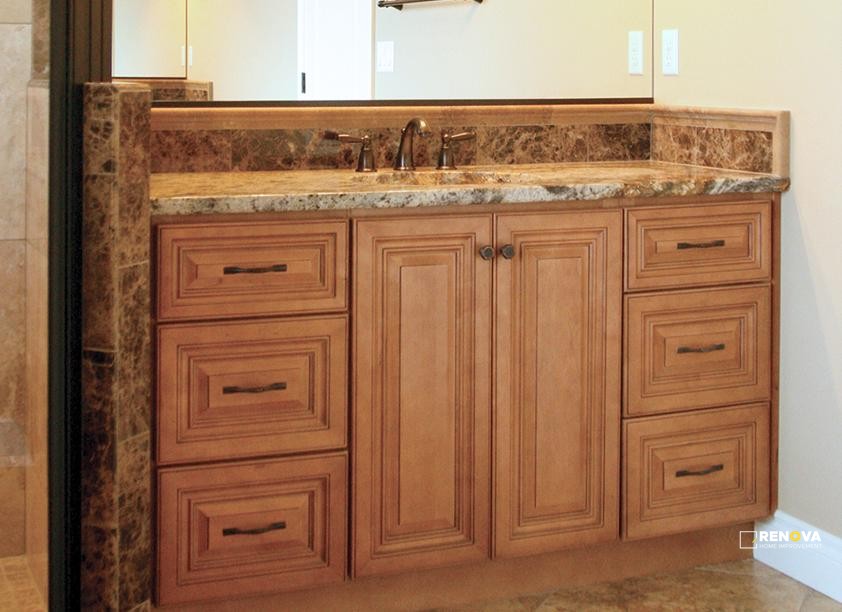

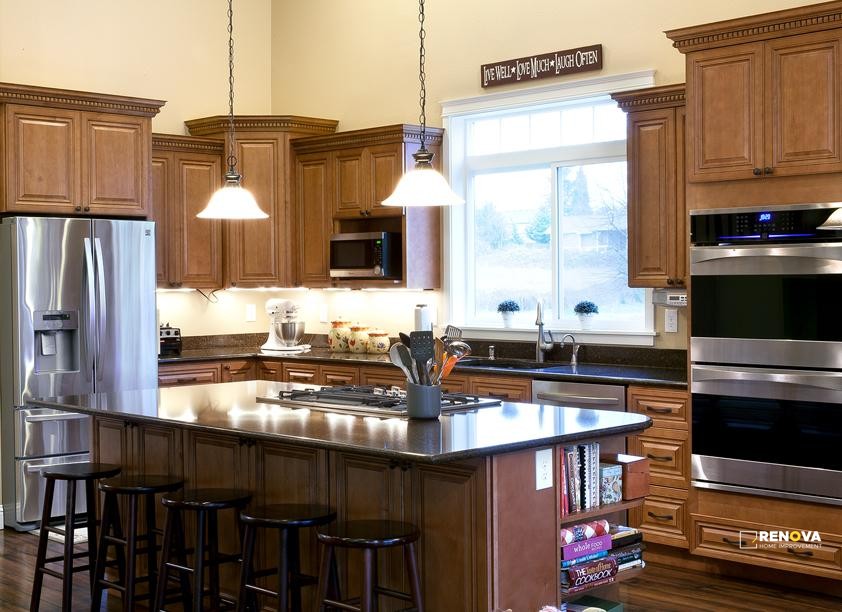

Primary Applications: Kitchen cabinetry, bathroom vanities, and residential storage systems where solid wood construction and adjustable hardware are required.
Performance Characteristics:
- Mortise-tenon joinery provides superior structural integrity compared to dowel-only construction
- Full-extension glides enable complete drawer access without binding
- Soft-close mechanism reduces impact stress on hinges and frame
- 6-way adjustable hinges accommodate minor frame variations and allow door alignment correction
- Plywood shelving resists warping in humidity-variable environments
- All-wood construction allows refinishing if finish wear occurs
Structural Advantages: Dovetail drawer joinery distributes lateral stress across multiple contact points. Metal base reinforcement prevents racking in lower cabinets under load.
Note: Special order item. Transfer fee applies. Specifications available at lubancabinetry.com.
Save materials as you browse. We’ll include your saved selections when you request an estimate.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | CO66 |
| Door/Drawer Material | All-wood, 3/4" thick |
| Door/Drawer Joinery | Mortise-tenon and/or dowel |
| Frame Material | All-wood, 3/4" thick |
| Frame Joinery | Dowel joint, dadoed |
| Cabinet Box | 5/8" plywood, clear coat |
| Drawer Box | 5/8" all-wood, 4-side dovetail |
| Overlay | Full overlay |
| Glides | Full-extension, soft-close, under-mounted |
| Hinges | 6-way adjustable, soft-close, hidden |
| Door Bumpers | Rubber, quiet-closing |
| Shelving | 3/4" plywood, adjustable, clear coat |
| Shelf Depth | 3/4" |
| Base Reinforcement | L-shaped metal brackets |
| Interior Finish | Clear coat |
| Order Type | Special order; transfer fee applies |
