Cloud Grey (B6) - All-Wood Full Overlay Cabinetry - cabinets

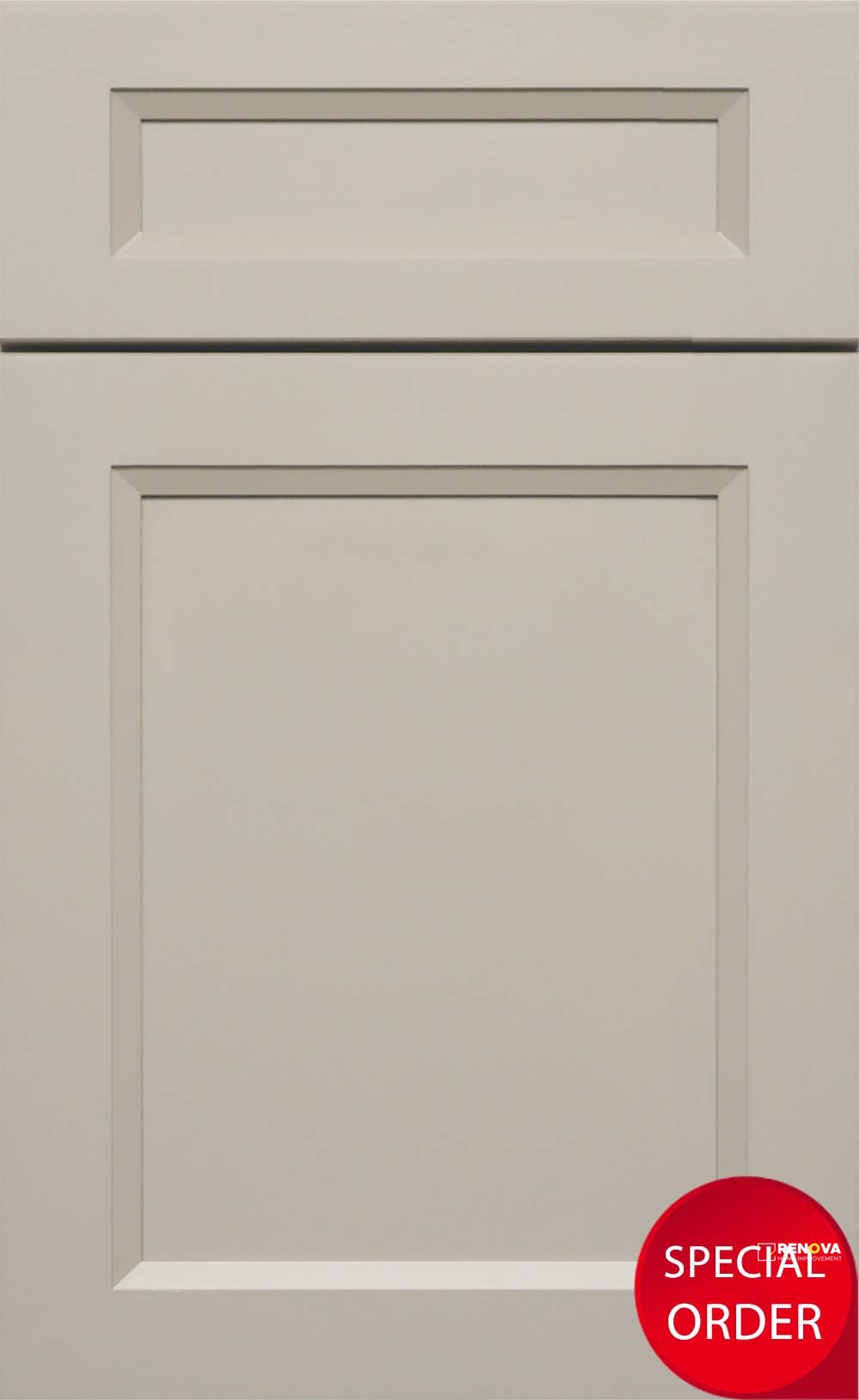

All-wood full overlay cabinet doors and frames
Technical Specifications
Door and drawer fronts: All-wood, 3/4-inch thick, full overlay construction with mortise-tenon and/or dowel joints. Frame: All-wood, 3/4-inch thick, assembled with dowel joints and dadoed for panel retention. Cabinet box: Plywood, 5/8-inch thick with clear coat interior finish. Drawer box: All-wood, 5/8-inch thick four sides, dovetail construction, clear coat finish. Shelves: Plywood, 3/4-inch thick, adjustable, clear coat, 3/4 depth. Hardware includes full extension under-mounted soft-close glides, 6-way adjustable concealed soft-close hinges, rubber door bumpers, and L-shaped metal brackets for base cabinet reinforcement.
Application & Performance

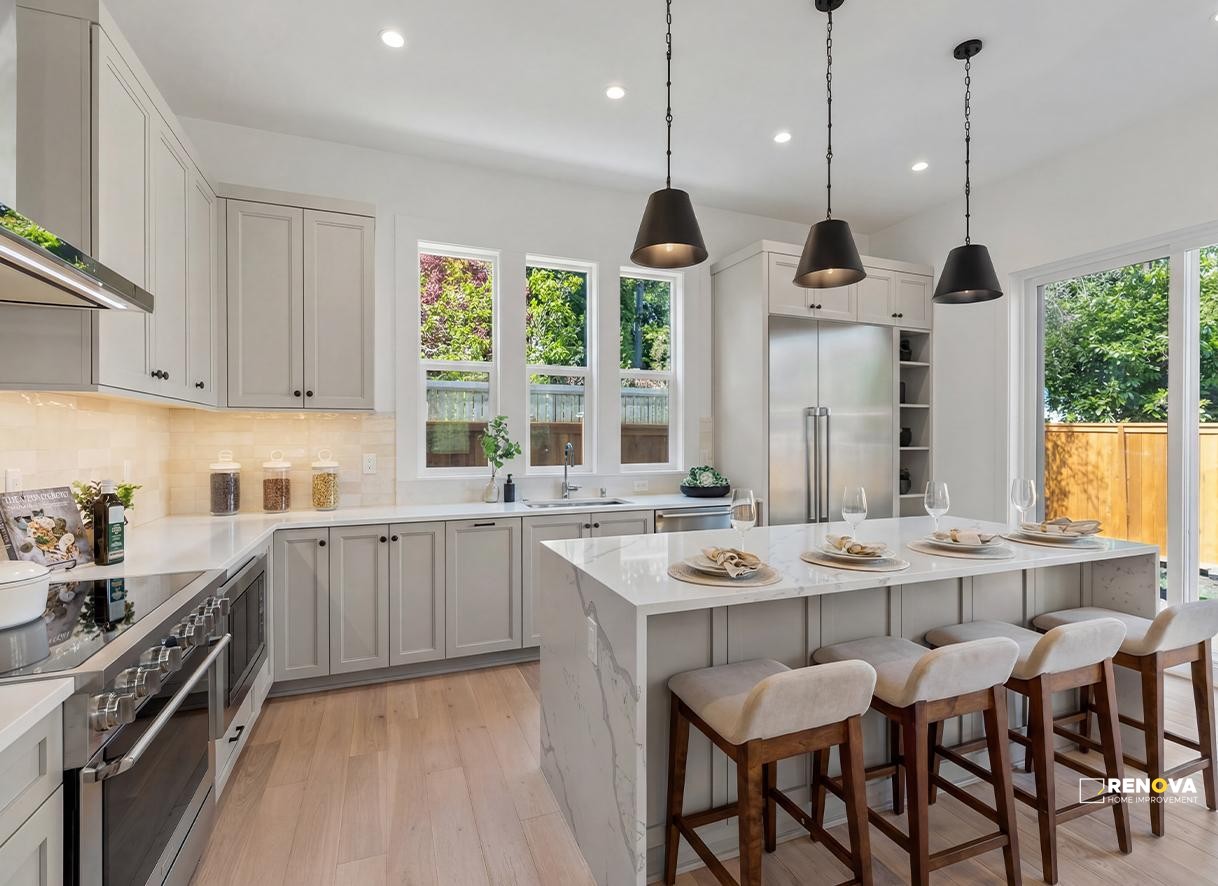

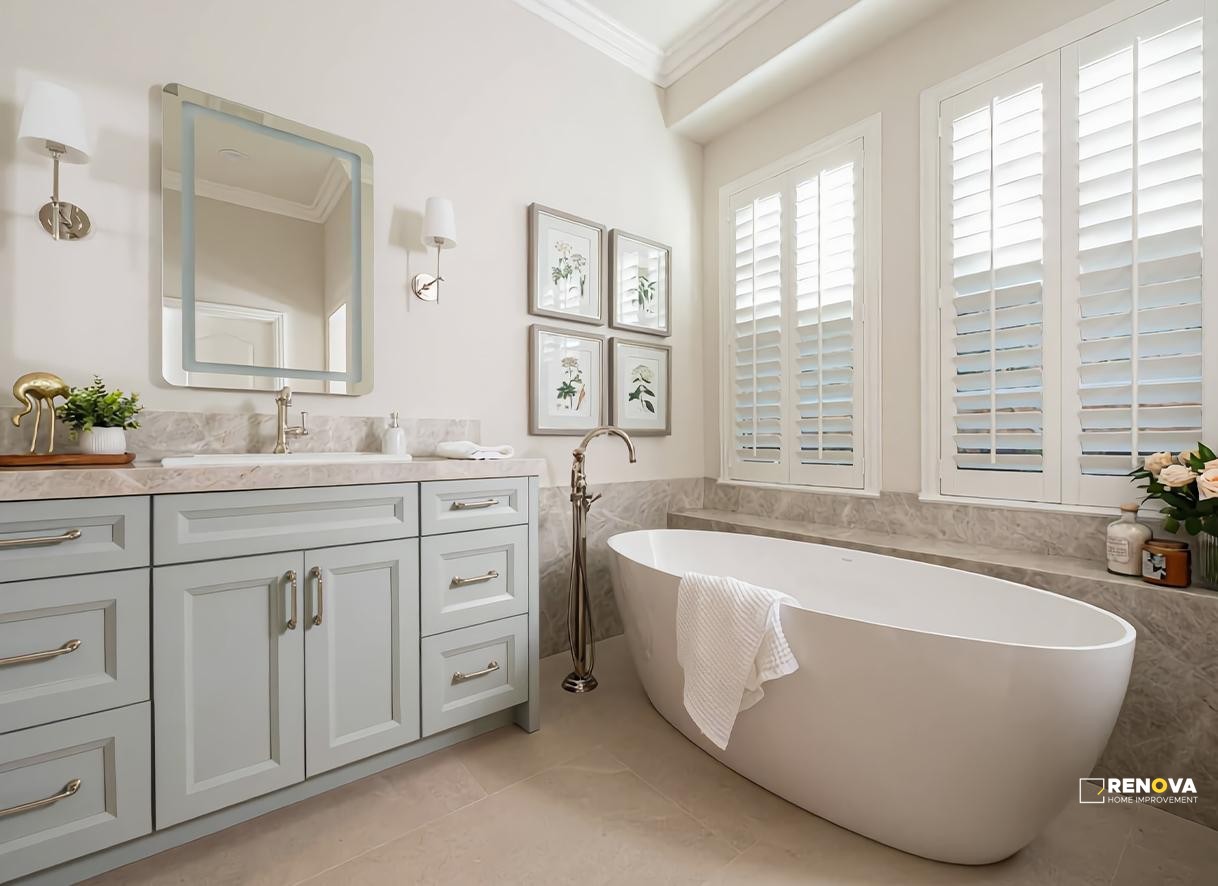

Suitable for kitchen and bathroom cabinet installations. 3/4-inch thick all-wood components provide structural rigidity. Mortise-tenon and dowel joints ensure joint integrity under load. Plywood box and shelves resist warping in controlled humidity environments. Soft-close glides and hinges reduce slam impact and noise. Dovetail drawer construction withstands repeated open-close cycles. Special order requires transfer fee; lead times apply.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | B6 |
| Door & Drawer | All-wood, 3/4\" thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4\" thick, dowel joint, dadoed |
| Glide | Full extension, soft-close, under-mounted |
| Shelf | Plywood, 3/4\" thick, adjustable, clear coat, 3/4 depth |
| Hinge | 6-way adjustable, soft-close, hidden |
| Cabinet Box | Plywood, 5/8\" thick, clear coat interior |
| Drawer Box | All-wood, 5/8\" thick or 4 sides, dovetail, clear coat |
| Bracket | L-shaped metal bracket reinforcement for base cabinets |
| Door Bumper | Rubber, quiet-closing |
| Order Type | Special Order, Transfer Fee Applies |
