Cream Highlight A7 - All-Wood Full Overlay Cabinetry

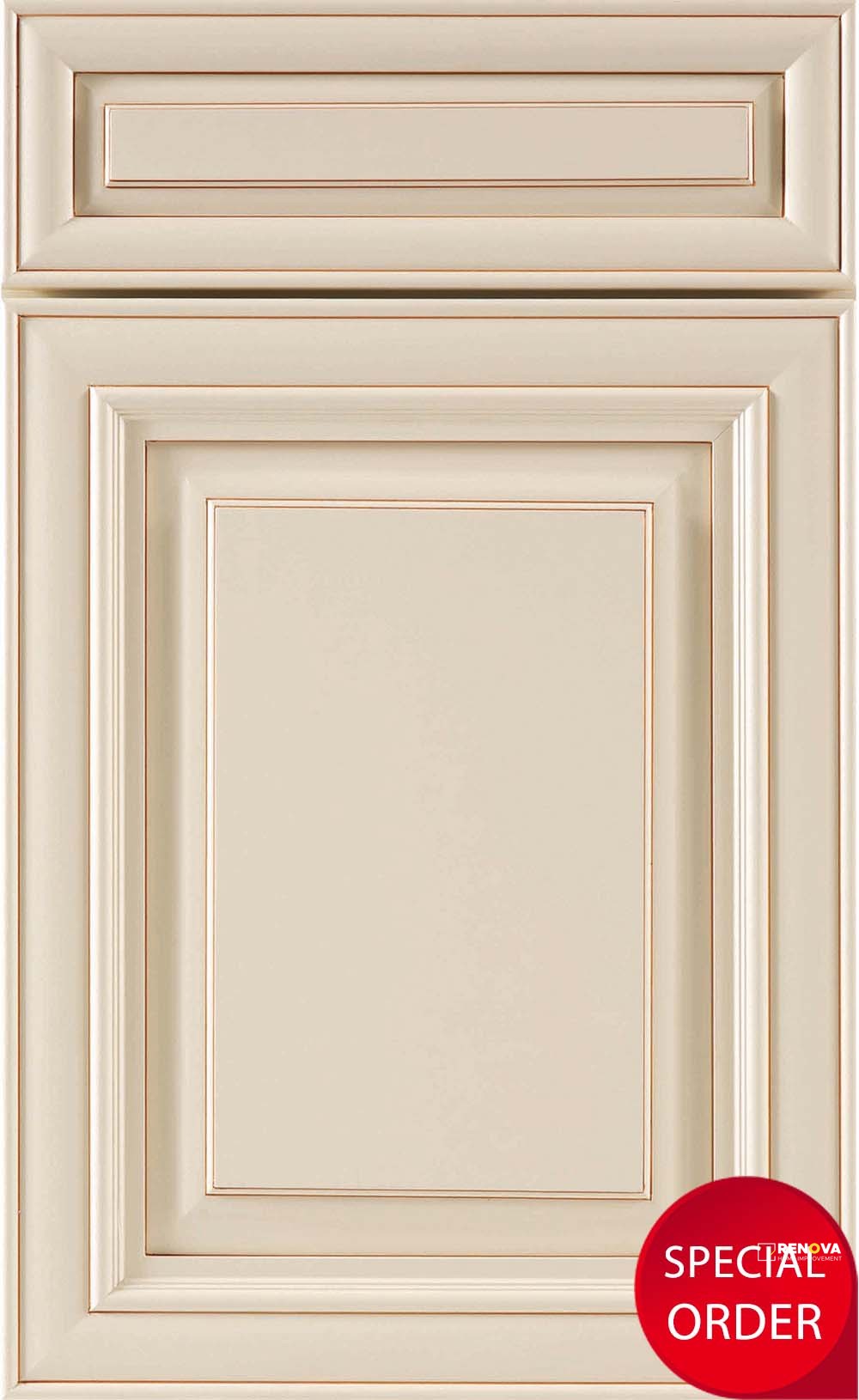

All-wood 3/4-inch full overlay cabinet doors
Technical Specifications
Door and drawer fronts: All-wood, 3/4-inch thick, full overlay construction with mortise-tenon and/or dowel joints for frame attachment.
Frame: All-wood, 3/4-inch thick, assembled with dowel joints, dadoed for panel insertion.
Cabinet box: Plywood, 5/8-inch thick sides with clear coat interior finish.
Drawer box: All-wood, 5/8-inch thick four sides, dovetail joinery, clear coat finish.
Glides: Full extension, under-mounted, soft-close mechanism.
Hinges: Hidden, 6-way adjustable, soft-close function.
Shelf: Plywood, 3/4-inch thick, adjustable positioning, clear coat, 3/4 cabinet depth.
Bracket: L-shaped metal for base cabinet reinforcement.
Door bumper: Rubber for quiet closing.
Application & Performance
Suitable for kitchen and bathroom cabinetry installations requiring durable all-wood components.
Mortise-tenon and dowel joints provide structural rigidity under load-bearing conditions.
Plywood box construction with 5/8-inch thickness resists warping in standard interior humidity ranges.
Soft-close glides and hinges reduce slam impact and operational noise.
Full overlay design maximizes storage face area.
Special order process; transfer fee applies. Not stocked for immediate delivery.
Save materials as you browse. We’ll include your saved selections when you request an estimate.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | A7 |
| Door & Drawer | All-wood, 3/4" thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4" thick, dowel joint, dadoed |
| Cabinet Box | Plywood, 5/8" thick, clear coat interior |
| Drawer Box | All-wood, 5/8" thick or 4 sides, dovetail, clear coat |
| Glide | Full extension, soft-close, under-mounted |
| Shelf | Plywood, 3/4" thick, adjustable, clear coat, 3/4 depth |
| Hinge | 6-way adjustable, soft-close, hidden |
| Bracket | L-shaped metal for base cabinets |
| Door Bumper | Rubber, quiet-closing |
| Order Type | Special order, transfer fee applies |
