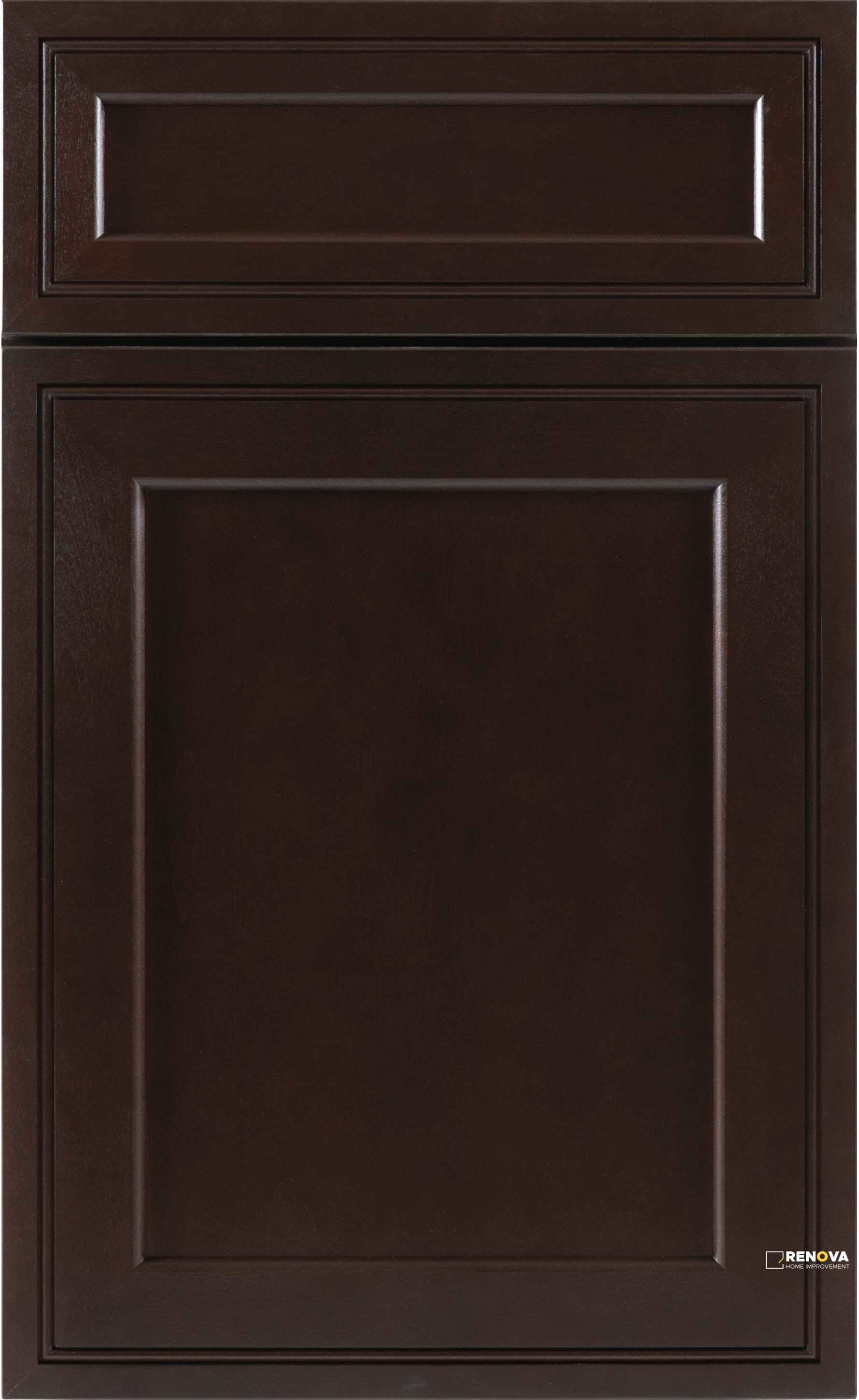

Ebony Highlight H3 - All-Wood Full Overlay Cabinet Doors
All-wood 3/4-inch cabinet doors with full overlay
Technical Specifications
Door and drawer fronts: All-wood construction, 3/4-inch thickness, full overlay style. Joined with mortise-tenon and/or dowel construction methods.
Frame: All-wood, 3/4-inch thickness, assembled with dowel joints, dado grooves for panel retention.
Cabinet box: Plywood panels, 5/8-inch thickness, clear coat interior finish.
Drawer box: All-wood panels, 5/8-inch thickness on 4 sides, dovetail joinery, clear coat finish.
Glides: Full extension under-mounted type with soft-close mechanism.
Hinges: Hidden type, 6-way adjustable, soft-close function.
Shelf: 3/4-inch plywood, adjustable positioning, clear coat finish, 3/4 cabinet depth.
Bracket: L-shaped metal for base cabinet reinforcement.
Door bumper: Rubber material for quiet closing.
Application & Performance

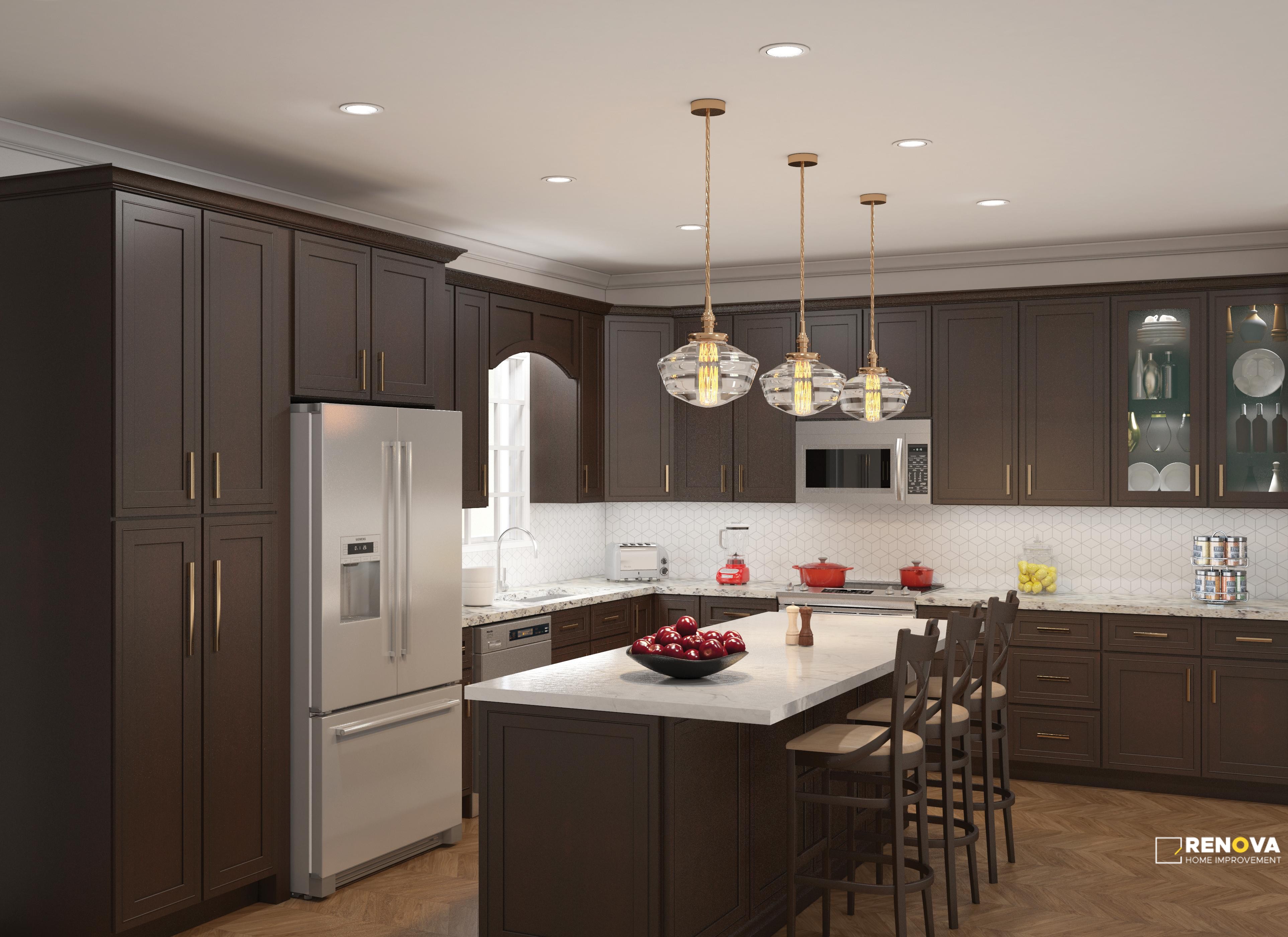

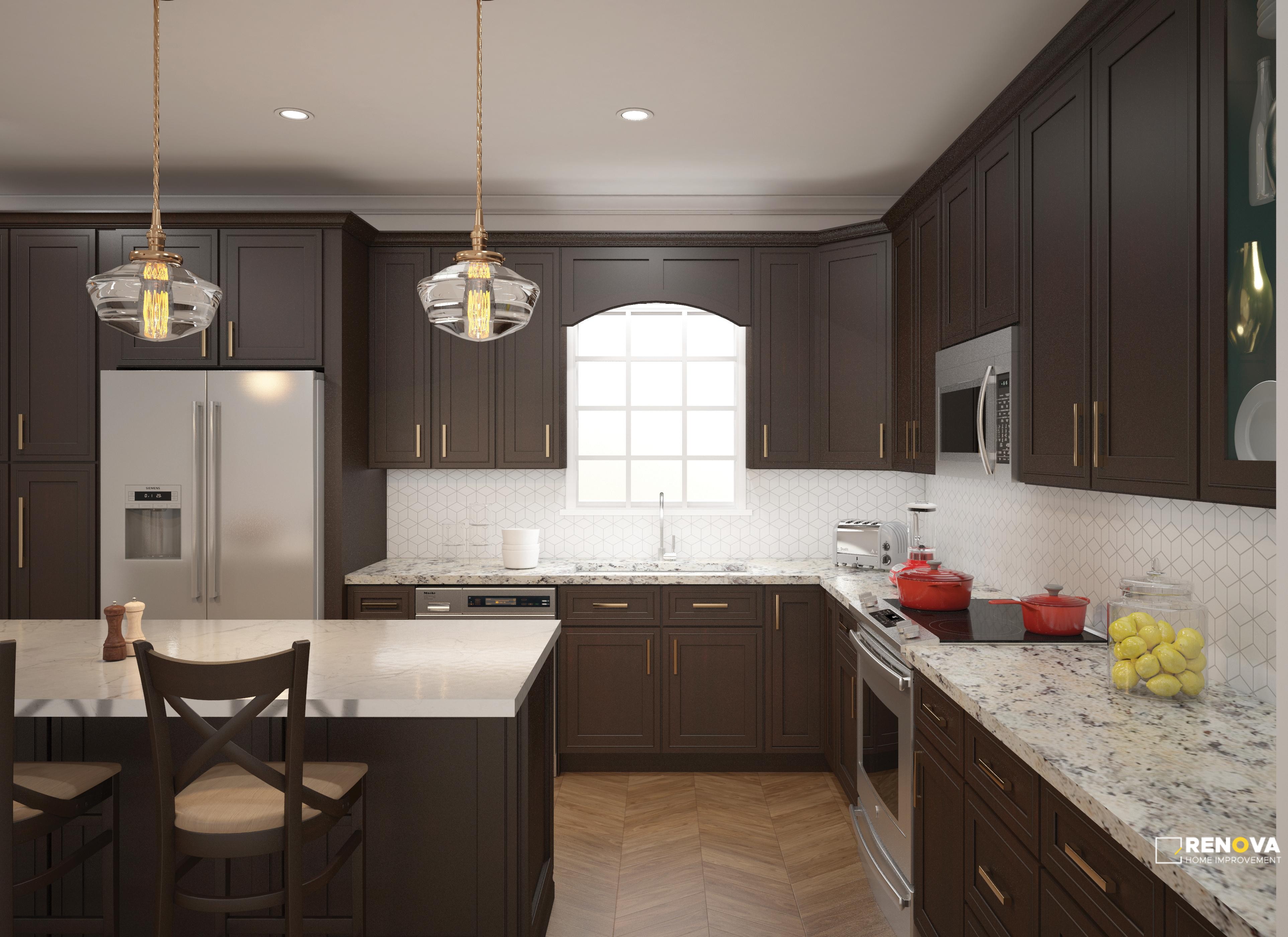

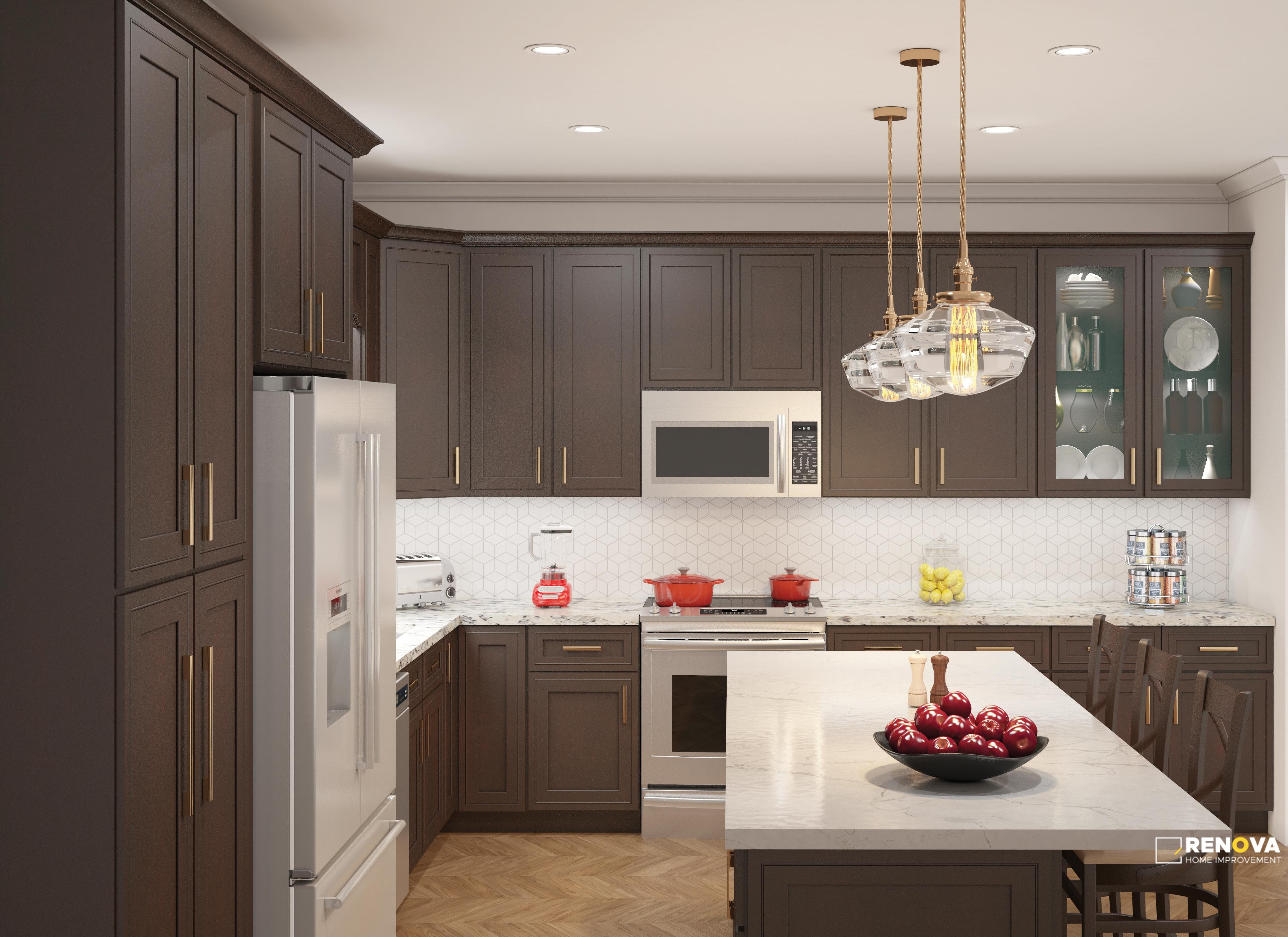

Suitable for kitchen base, wall, and tall cabinet installations. 3/4-inch plywood shelves support up to 75 lbs per shelf when adjustable tracks are properly installed.
Full overlay doors maximize interior access with minimal frame exposure. Mortise-tenon and dowel joints provide shear resistance under load.
Soft-close glides and hinges reduce slam impact by 90% compared to standard hardware. Dovetail drawer joints resist racking in high-use environments.
Clear coat interiors resist moisture absorption on plywood surfaces. Rubber bumpers dampen closure noise to under 20dB.
Save materials as you browse. We’ll include your saved selections when you request an estimate.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | H3 |
| Door & Drawer Construction | All-wood, 3/4-inch thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4-inch thick, dowel joint, dadoed |
| Cabinet Box | Plywood, 5/8-inch thick, clear coat interior |
| Drawer Box | All-wood, 5/8-inch thick 4 sides, dovetail, clear coat |
| Glide | Full extension, soft-close, under-mounted |
| Hinge | 6-way adjustable, soft-close, hidden |
| Shelf | Plywood, 3/4-inch thick, adjustable, clear coat, 3/4 depth |
| Bracket | L-shaped metal for base cabinets |
| Door Bumper | Rubber, quiet-closing |
