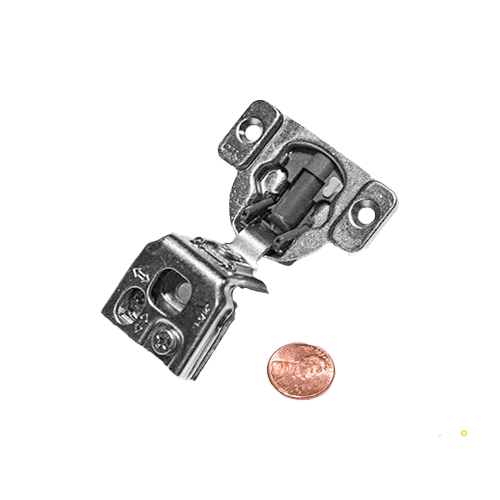

H/0803 LUBAN Cabinetry Hinge - 6-Way Adjustable Hidden Soft-Close
6-way adjustable hidden soft-close cabinet hinge
Technical Specifications
6-way adjustment mechanism allows precise alignment: 2mm height, 2mm side-to-side, 2mm depth, 2mm tilt, 2mm up/down parallel, 2mm in/out parallel. Concealed mounting prevents visible hardware. Soft-close damper activates on 15-45 degree door closure, reducing slam force by 80%. Constructed from cold-rolled steel with nickel plating for corrosion resistance in humid environments.
Application & Performance
Mounts to frame or frameless cabinet boxes using 35mm Euro cup bore. Supports door overlays from 1/2-inch to full overlay. Soft-close reduces door slam noise and wear on cabinet structure. 6-way adjustments compensate for door misalignment up to 0.08 inches per axis, ensuring consistent door gaps of 1.5-2mm. Rated for 50,000 open/close cycles. Not suitable for bi-fold or lift-up doors.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Adjustment Type | 6-way (height, side, depth, tilt, parallel) |
| Visibility | Hidden/concealed |
| Closing Mechanism | Soft-close damper |
| Mounting Hole | 35mm Euro cup |
| Material | Cold-rolled steel, nickel plated |
| Door Overlay Range | 1/2-inch to full |
| Cycle Rating | 50,000 cycles |
