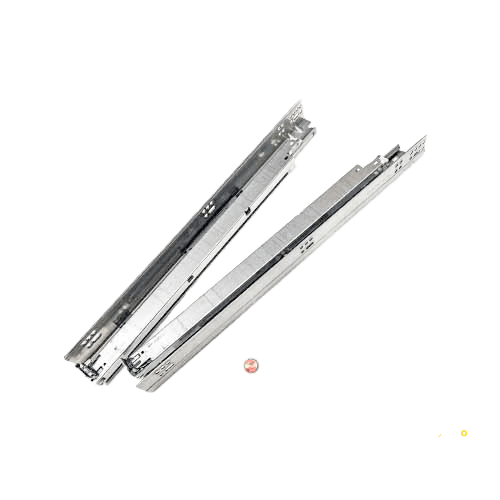

21-inch Blum soft close undermount drawer slide
Blum GLIDE-SOFT CLOSE undermount drawer runner. Full extension design. 21-inch (535mm) nominal length. Integrated soft close mechanism activates at end of drawer stroke. Zinc plated steel construction. Load capacity rated for 50 lbs (22.7 kg) dynamic use. MPN: B563H5330B. Rear mounting bracket sold separately. Side space requirement: 13/32-inch (10mm). Installation via clip system on drawer sides.
Designed for frameless cabinetry drawers. Full extension provides complete drawer access. Soft close prevents slamming via integrated dampening. Rated for 50 lbs load in residential applications. Zinc plating resists corrosion in kitchen environments. Requires 10mm side clearance. Not for use with rear bracket included; order separately to complete installation.
| Property | Value |
|---|---|
| Product Code | BLUM |
| MPN | B563H5330B |
| Type | GLIDE-SOFT CLOSE |
| Length | 21 inches (535mm) |
| Extension | Full |
| Mounting | Undermount |
| Load Capacity | 50 lbs (22.7 kg) |
| Side Clearance | 13/32-inch (10mm) |
| Material | Zinc plated steel |
| Rear Bracket | Not included |
