Mahogany J5 - All-Wood Full Overlay Cabinetry - cabinets

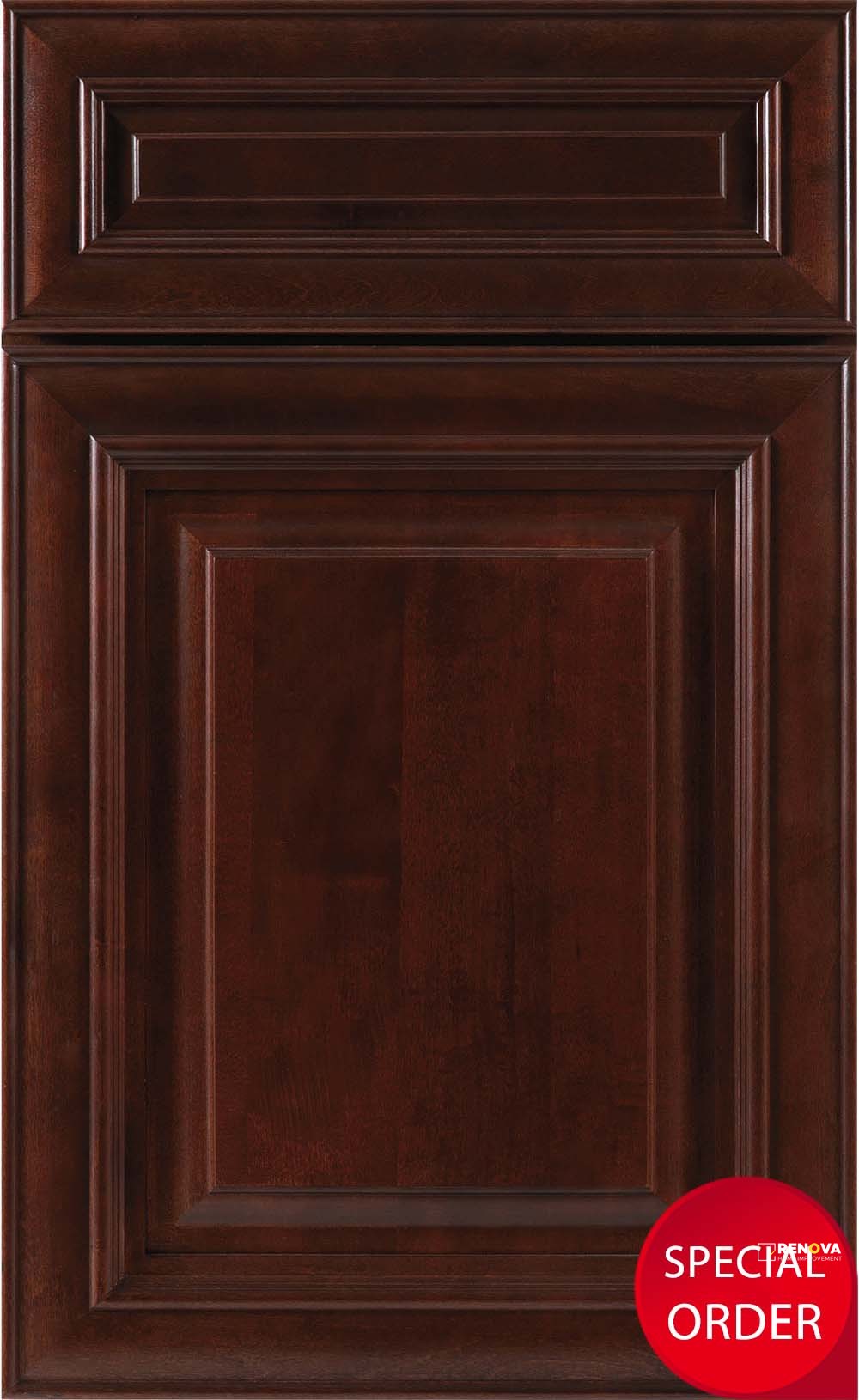

All-wood full overlay cabinet doors and frames
Technical Specifications
Door and drawer fronts: All-wood, 3/4-inch thick, full overlay, joined with mortise-tenon or dowel construction. Frame: All-wood, 3/4-inch thick, assembled with dowel joints, dadoed for panels. Cabinet box: Plywood, 5/8-inch thick sides, clear coat interior finish. Drawer box: All-wood, 5/8-inch thick four sides, dovetail joinery, clear coat. Shelves: Plywood, 3/4-inch thick, adjustable, clear coat, 3/4 depth. Glides: Full extension, under-mounted, soft-close mechanism. Hinges: 6-way adjustable, soft-close, concealed type. Bracket: L-shaped metal for base cabinet reinforcement. Door bumper: Rubber for quiet closing.
Application & Performance

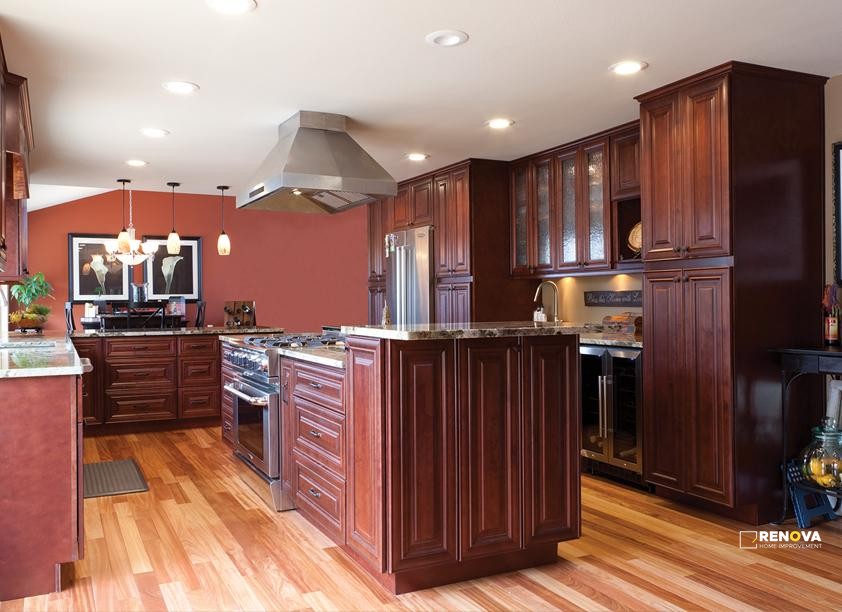

Suitable for kitchen and bathroom cabinet installations requiring durable all-wood components. 3/4-inch thick doors and frames provide structural rigidity. Plywood box construction resists warping under load. Dovetail drawer joints enhance load-bearing capacity. Soft-close glides and hinges reduce slam impact and noise. Full extension glides allow complete drawer access. Special order process; transfer fee applies. Dadoed frame joints improve panel stability.
Save materials as you browse. We’ll include your saved selections when you request an estimate.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | J5 |
| Door & Drawer | All-wood, 3/4" thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4" thick, dowel joint, dadoed |
| Glide | Full extension, soft-close, under-mounted |
| Shelf | Plywood, 3/4" thick, adjustable, clear coat, 3/4 depth |
| Hinge | 6-way adjustable, soft-close, hidden |
| Cabinet Box | Plywood, 5/8" thick, clear coat interior |
| Drawer Box | All-wood, 5/8" thick or 4 sides, dovetail, clear coat |
| Bracket | L-shaped metal bracket reinforcement for base cabinets |
| Door Bumper | Rubber, quiet-closing |
| Order Type | Special order, transfer fee applies |
