Mocha Highlight K10 - All-Wood Full Overlay Cabinetry
All-wood cabinetry with full overlay doors
Technical Specifications

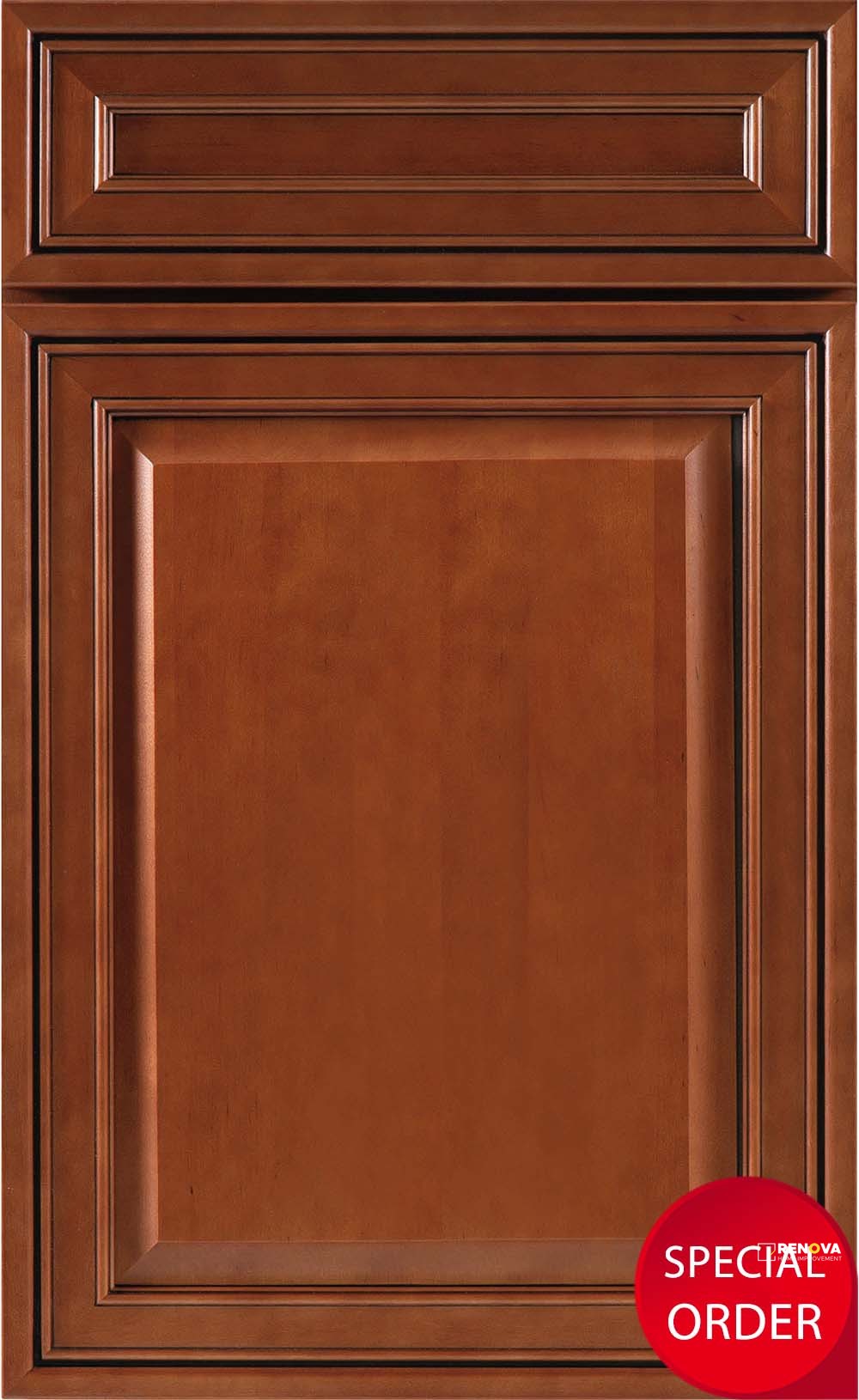

Door and drawer fronts: All-wood construction, 3/4" thickness, full overlay design, joined by mortise-tenon and/or dowel methods. Frame: All-wood, 3/4" thick, assembled with dowel joints, dadoed for panel fit. Cabinet box: Plywood, 5/8" thick, clear coat interior finish. Drawer box: All-wood, 5/8" thick four sides, dovetail construction, clear coat. Shelves: Plywood, 3/4" thick, adjustable positioning, clear coat, 3/4 cabinet depth. Glides: Full extension, soft-close, under-mounted. Hinges: 6-way adjustable, soft-close, concealed type. Brackets: L-shaped metal for base cabinet reinforcement. Door bumpers: Rubber for quiet closure.
Application & Performance

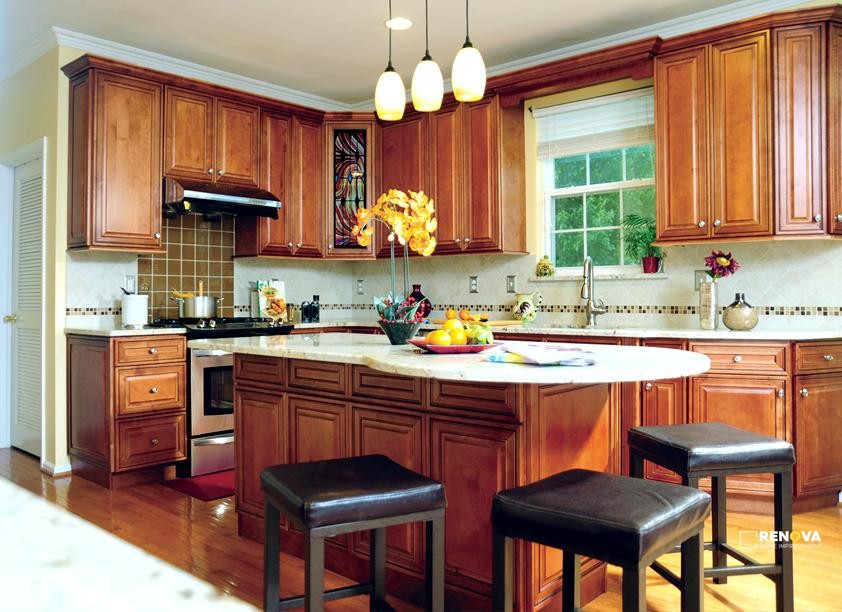

Suitable for kitchen, bath, and utility cabinet installations requiring wood face frames and overlay doors. 3/4" plywood shelves support up to 75 lbs per shelf evenly distributed. Dovetail drawer joints provide 30% greater tensile strength than standard joints. Soft-close glides and hinges reduce slam impact by 90%. Plywood box resists warping in 40-70% humidity range. Special order production; transfer fee applies for modifications.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | K10 |
| Door & Drawer | All-wood, 3/4\" thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4\" thick, dowel joint, dadoed |
| Glide | Full extension, soft-close, under-mounted |
| Shelf | Plywood, 3/4\" thick, adjustable, clear coat, 3/4 depth |
| Hinge | 6-way adjustable, soft-close, hidden |
| Cabinet Box | Plywood, 5/8\" thick, clear coat interior |
| Drawer Box | All-wood, 5/8\" thick 4 sides, dovetail, clear coat |
| Bracket | L-shaped metal for base cabinets |
| Door Bumper | Rubber, quiet-closing |
| Order Type | Special order, transfer fee applies |
