Quill White B5 - All-Wood Full Overlay Cabinetry - cabinets

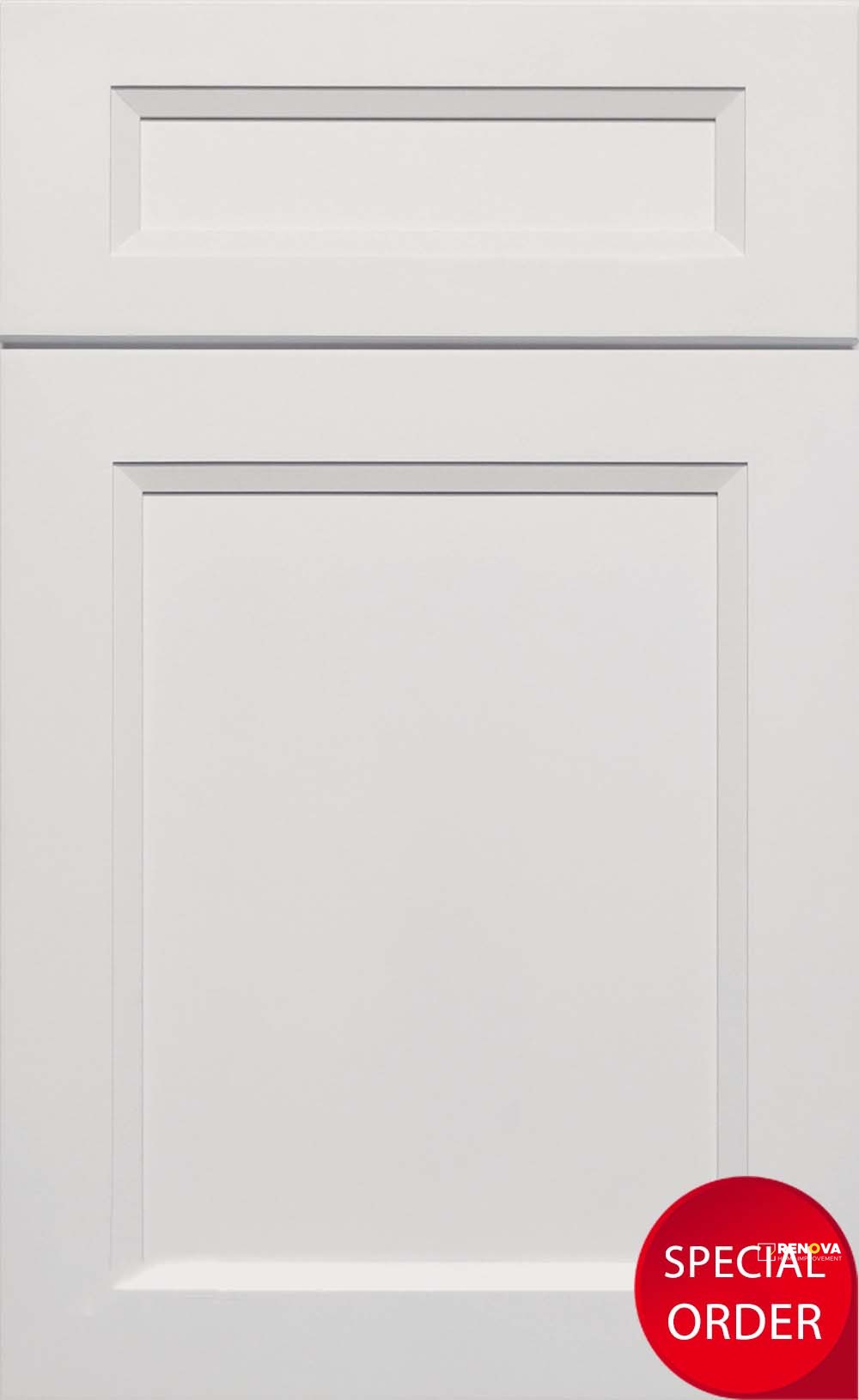

All-wood full overlay cabinet doors and frames
Technical Specifications
Door and drawer fronts: All-wood, 3/4-inch thick, full overlay, joined with mortise-tenon or dowel construction. Frame: All-wood, 3/4-inch thick, assembled with dowel joints, dadoed for panel fit. Cabinet box: Plywood, 5/8-inch thick, clear coat interior finish. Drawer box: All-wood, 5/8-inch thick sides, dovetail joints, clear coat finish. Shelves: Plywood, 3/4-inch thick, adjustable, clear coat, 3/4 depth. Glides: Full extension, soft-close, under-mounted. Hinges: 6-way adjustable, soft-close, concealed type. Bracket: L-shaped metal for base cabinet reinforcement. Door bumper: Rubber for quiet closing.
Application & Performance
Suitable for kitchen base, wall, and tall cabinet installations. 3/4-inch thick all-wood components provide structural rigidity. Mortise-tenon and dowel joints resist joint failure under load. Plywood box and shelves maintain flatness in varying humidity. Soft-close glides and hinges reduce slam impact on frames. Dovetail drawer joints withstand repeated opening. Special order requires transfer fee.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | B5 |
| Door & Drawer | All-wood, 3/4-inch thick, full overlay, mortise-tenon or dowel joints |
| Frame | All-wood, 3/4-inch thick, dowel joint, dadoed |
| Cabinet Box | Plywood, 5/8-inch thick, clear coat interior |
| Drawer Box | All-wood, 5/8-inch thick sides, dovetail joints, clear coat |
| Shelf | Plywood, 3/4-inch thick, adjustable, clear coat, 3/4 depth |
| Glide | Full extension, soft-close, under-mounted |
| Hinge | 6-way adjustable, soft-close, hidden |
| Bracket | L-shaped metal for base cabinets |
| Door Bumper | Rubber, quiet-closing |
| Order Type | Special order, transfer fee applies |
