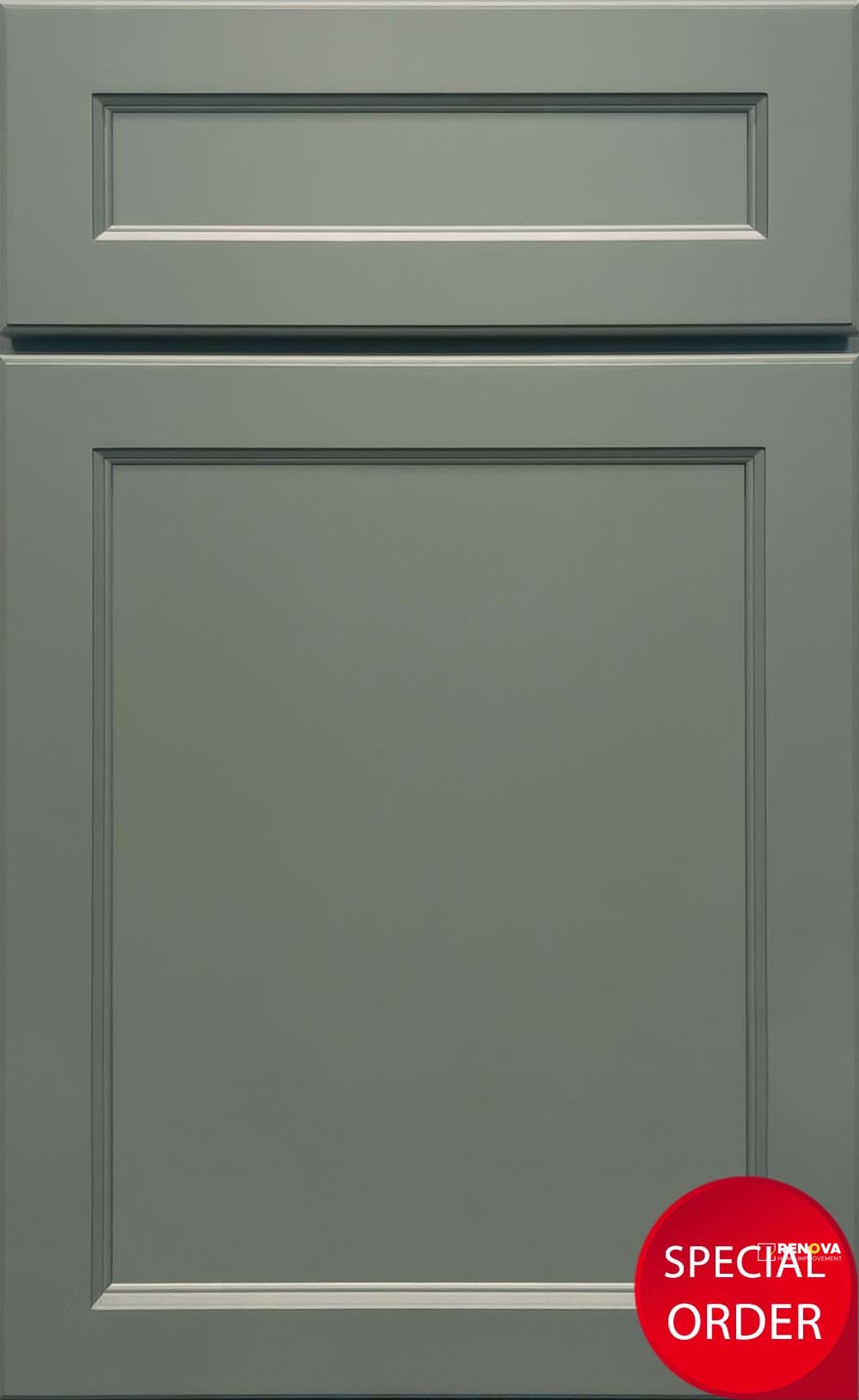

LUBAN E3 Sage Green - All-Wood Full Overlay Cabinet Doors
All-wood full overlay cabinet doors and frames
Technical Specifications
Door and drawer fronts: All-wood, 3/4-inch thick, full overlay construction with mortise-tenon and/or dowel joints. Frame: All-wood, 3/4-inch thick, assembled with dowel joints, dadoed for panel fit. Cabinet box: Plywood, 5/8-inch thick with clear coat interior finish. Drawer box: All-wood, 5/8-inch thick sides or 4 sides, dovetail construction, clear coat finish. Shelves: Plywood, 3/4-inch thick, adjustable positioning, clear coat, 3/4 depth. Glides: 3/4 extension, soft-close, under-mounted. Hinges: 6-way adjustable, soft-close, concealed type. Brackets: L-shaped metal for base cabinet reinforcement. Door bumpers: Rubber for quiet closing.
Application & Performance
Suitable for kitchen and bathroom cabinet installations requiring full overlay door alignment. 3/4-inch plywood shelves support up to standard household loads at 3/4 depth. Soft-close glides and hinges reduce slam impact and noise. Dovetail drawer joints provide shear strength for repeated use. All-wood components resist warping under normal humidity variations. Special order production; transfer fee applies. Dadoed frames ensure stable panel retention.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | E3 |
| Door & Drawer | All-wood, 3/4" thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4" thick, dowel joint, dadoed |
| Glide | 3/4 extension, soft-close, under-mounted |
| Shelf | Plywood, 3/4" thick, adjustable, clear coat, 3/4 depth |
| Hinge | 6-way adjustable, soft-close, hidden |
| Cabinet Box | Plywood, 5/8" thick, clear coat interior |
| Drawer Box | All-wood, 5/8" thick or 4 sides, dovetail, clear coat |
| Bracket | L-shaped metal bracket reinforcement for base cabinets |
| Door Bumper | Rubber, quiet-closing |
| Order Type | Special Order, Transfer Fee Applies |
