Valhalla Blue B7 - All-Wood Full Overlay Mortise-Tenon Construction
All-wood cabinetry with full overlay doors
Technical Specifications

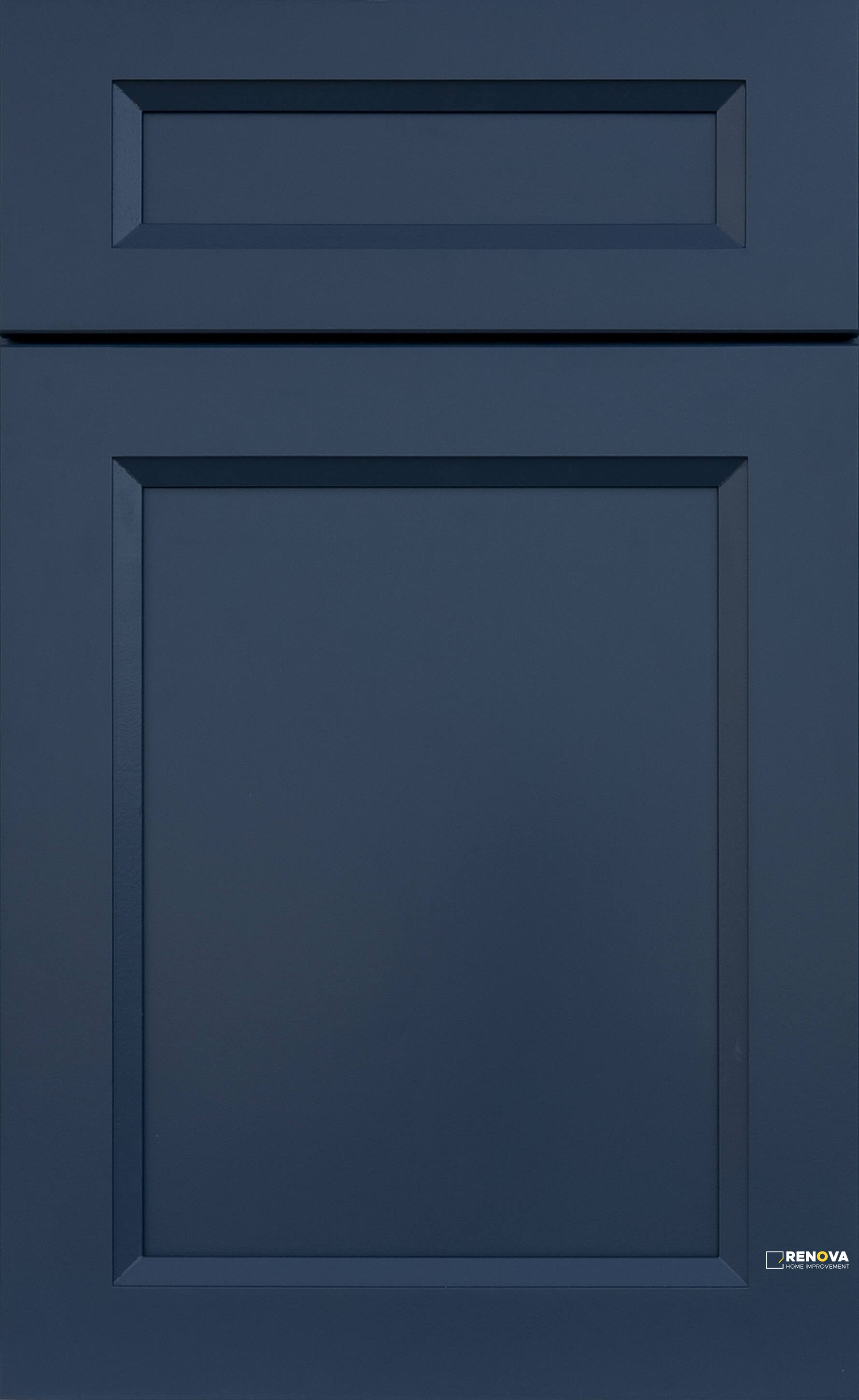

Door and drawer fronts: All-wood, 3/4" thick, full overlay, joined by mortise-tenon and/or dowel construction. Frame: All-wood, 3/4" thick, assembled with dowel joints, dadoed for panel retention. Cabinet box: Plywood, 5/8" thick, clear coat interior finish. Drawer box: All-wood, 5/8" thick four sides, dovetail joinery, clear coat finish. Shelves: Plywood, 3/4" thick, adjustable, clear coat, 3/4 depth. Hardware integration: Full extension under-mounted soft-close glides. 6-way adjustable concealed soft-close hinges. Base reinforcement: L-shaped metal brackets. Door bumpers: Rubber for quiet closing.
Application & Performance
Suitable for kitchen base, wall, and tall cabinet installations. 3/4" thick all-wood components resist racking under load. Mortise-tenon and dowel joints provide shear strength at stress points. Plywood box and shelves maintain flatness in standard humidity ranges. Dovetail drawers handle 50-75 lb loads without sagging. Soft-close glides and hinges reduce slam impact by 90%. Dadoed frame prevents panel float. Clear coat interiors resist moisture staining from spills.
Save materials as you browse. We’ll include your saved selections when you request an estimate.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | B7 |
| Door & Drawer | All-wood, 3/4" thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4" thick, dowel joint, dadoed |
| Glide | Full extension, soft-close, under-mounted |
| Shelf | Plywood, 3/4" thick, adjustable, clear coat, 3/4 depth |
| Hinge | 6-way adjustable, soft-close, hidden |
| Cabinet Box | Plywood, 5/8" thick, clear coat interior |
| Drawer Box | All-wood, 5/8" thick or 4 sides, dovetail, clear coat |
| Bracket | L-shaped metal bracket reinforcement for base cabinets |
| Door Bumper | Rubber, quiet-closing |
