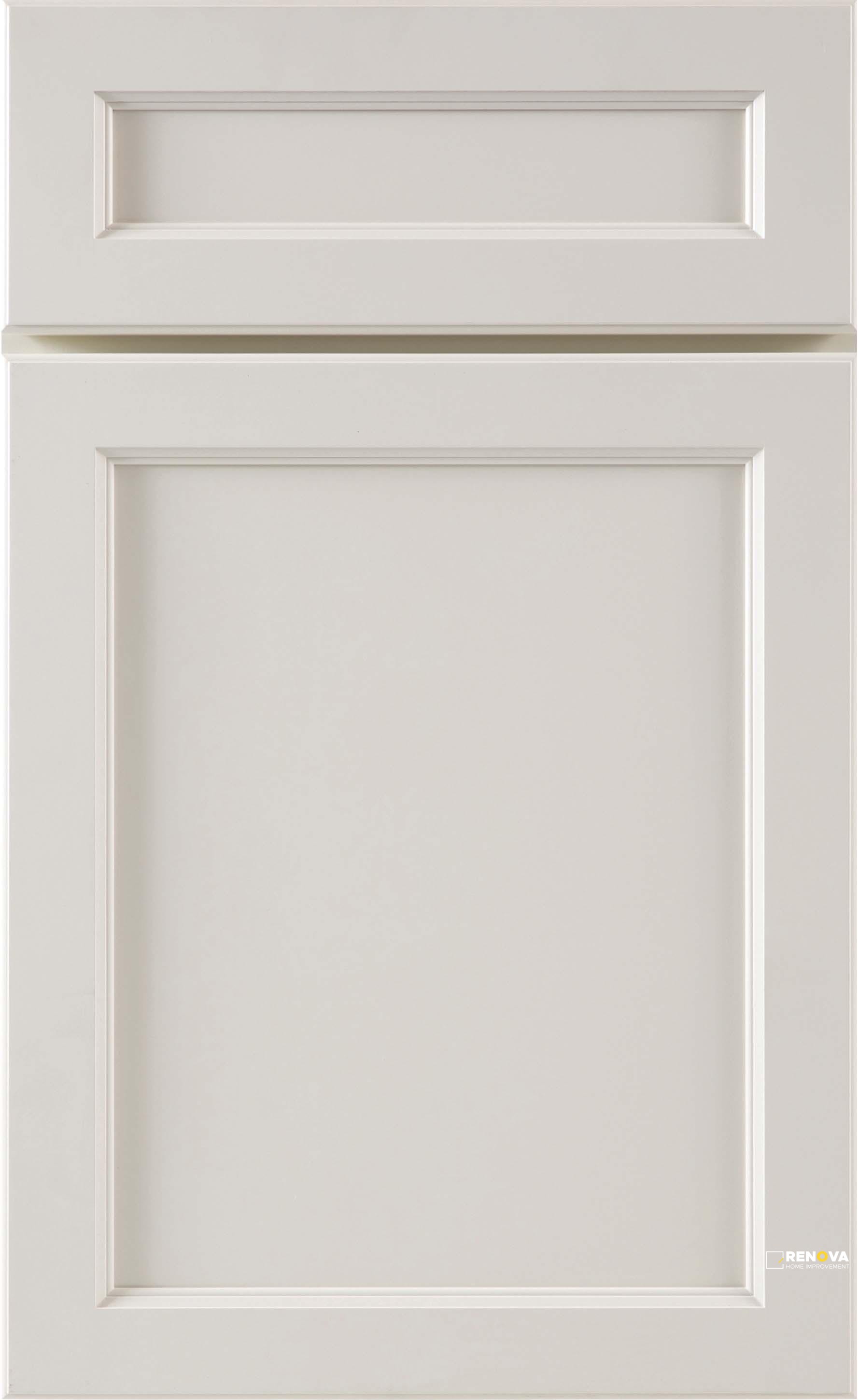

Vivid White E1 - All-Wood Full Overlay Cabinet Doors
All-wood 3/4-inch full overlay cabinet doors
Technical Specifications
Door and drawer fronts: All-wood construction, 3/4-inch thickness, full overlay design, joined with mortise-tenon and/or dowel methods. Frame: All-wood, 3/4-inch thick, assembled with dowel joints, dadoed for panel fit. Cabinet box: Plywood, 5/8-inch thick walls, clear coat interior finish. Drawer box: All-wood, 5/8-inch thick sides or 4-sided construction, dovetail joinery, clear coat finish. Shelf: Plywood, 3/4-inch thick, adjustable positioning, clear coat, 3/4 depth of cabinet. Glides: 3/4 extension, soft-close mechanism, under-mounted. Hinges: 6-way adjustable, soft-close, concealed type. Bracket: L-shaped metal for base cabinet reinforcement. Door bumper: Rubber for quiet closing.
Application & Performance
Suitable for kitchen base, wall, and tall cabinets. 3/4-inch all-wood doors resist warping under normal humidity variations. Dovetail drawer joints provide shear strength for 75 lb loads. Soft-close glides and hinges reduce slam impact by 90%. Plywood box with clear coat interior resists moisture absorption compared to particleboard. Dadoed frames ensure square assembly and panel stability. Rubber bumpers minimize vibration noise.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Product Code | E1 |
| Door & Drawer | All-wood, 3/4-inch thick, full overlay, mortise-tenon and/or dowel joints |
| Frame | All-wood, 3/4-inch thick, dowel joint, dadoed |
| Glide | 3/4 extension, soft-close, under-mounted |
| Shelf | Plywood, 3/4-inch thick, adjustable, clear coat, 3/4 depth |
| Hinge | 6-way adjustable, soft-close, hidden |
| Cabinet Box | Plywood, 5/8-inch thick, clear coat interior |
| Drawer Box | All-wood, 5/8-inch thick or 4 sides, dovetail, clear coat |
| Bracket | L-shaped metal bracket reinforcement for base cabinets |
| Door Bumper | Rubber, quiet-closing |
