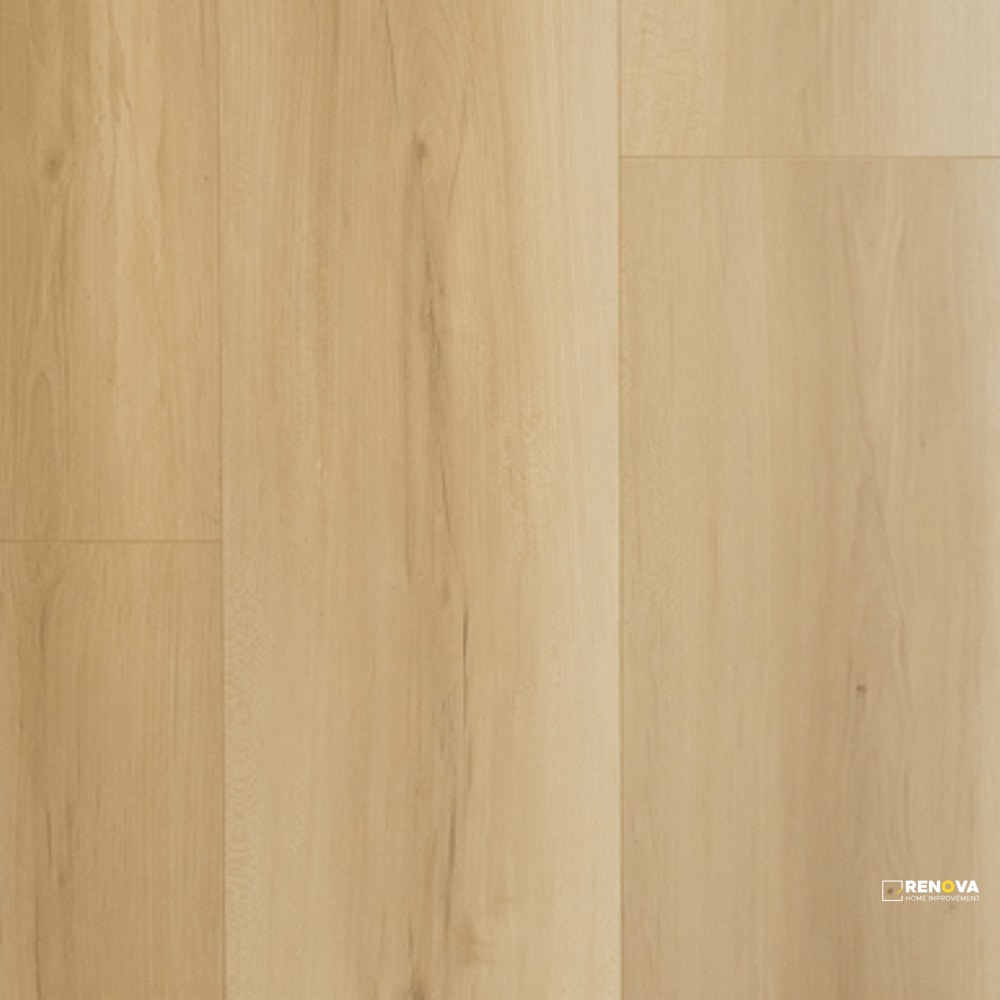

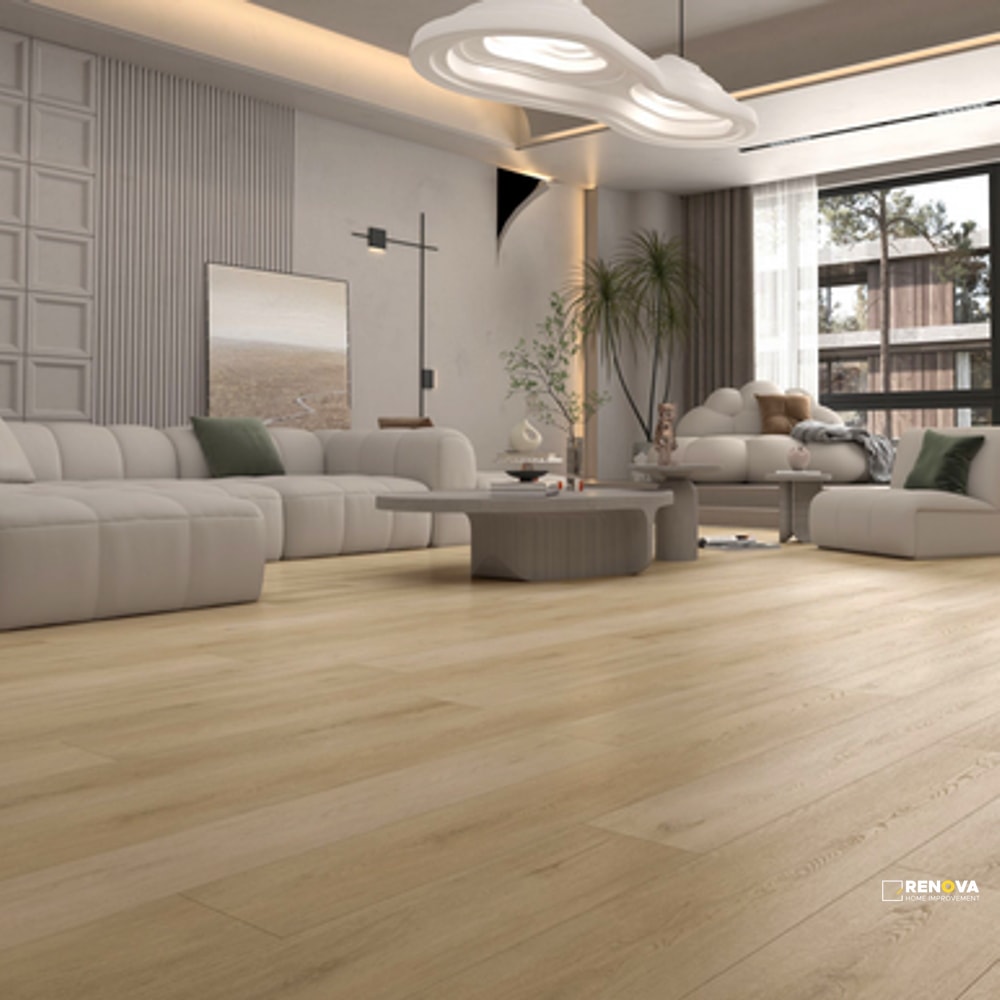

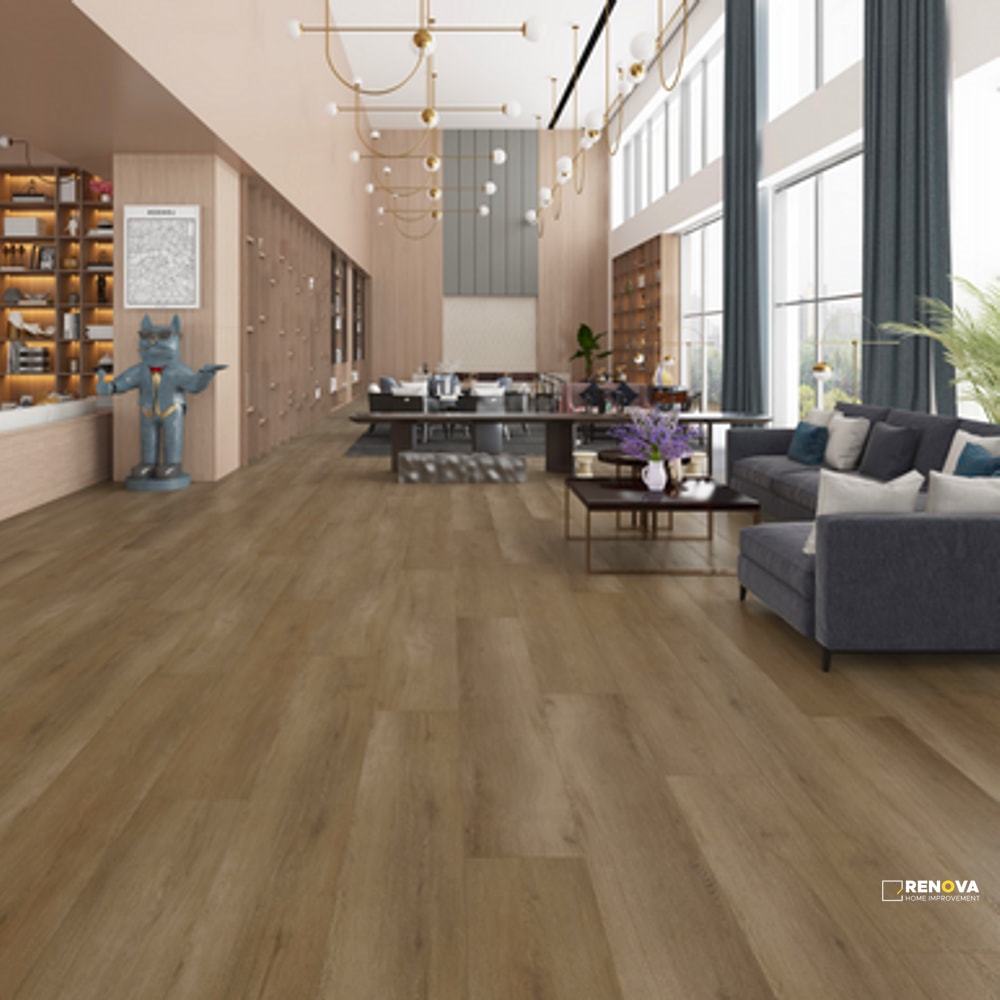

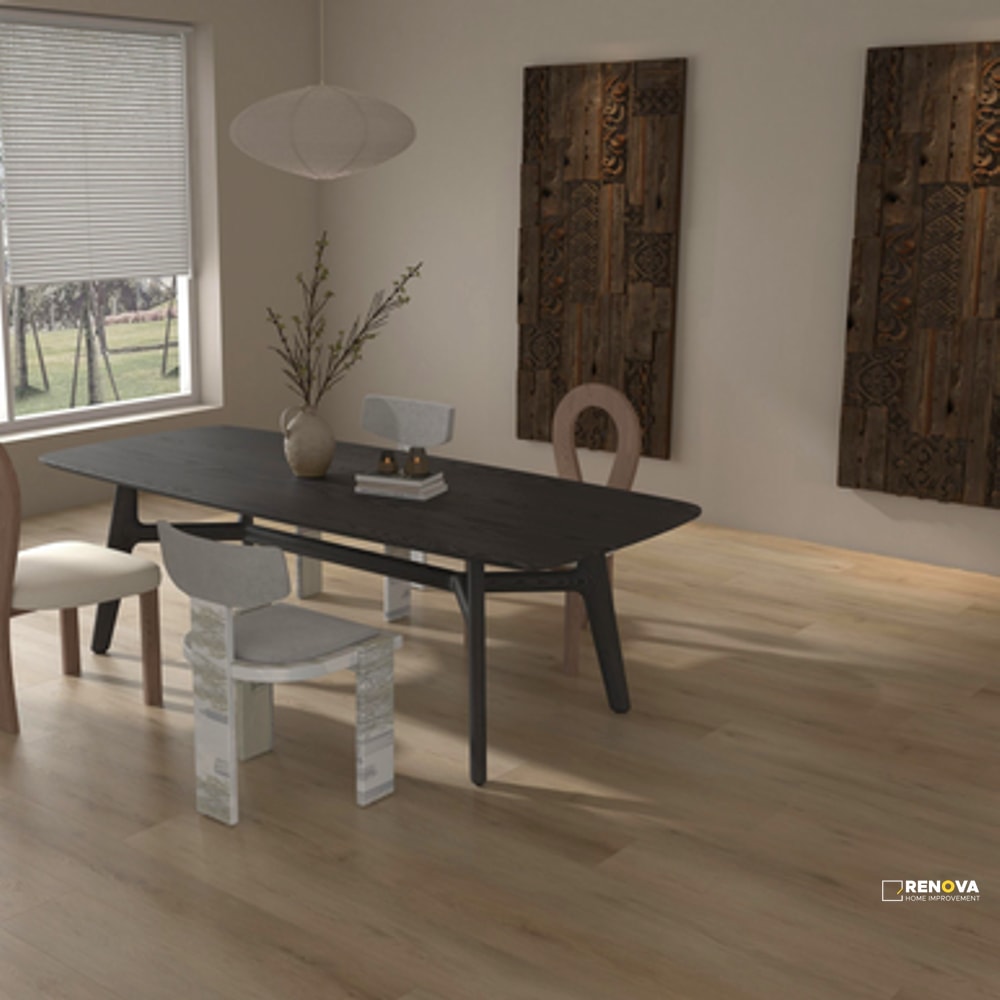

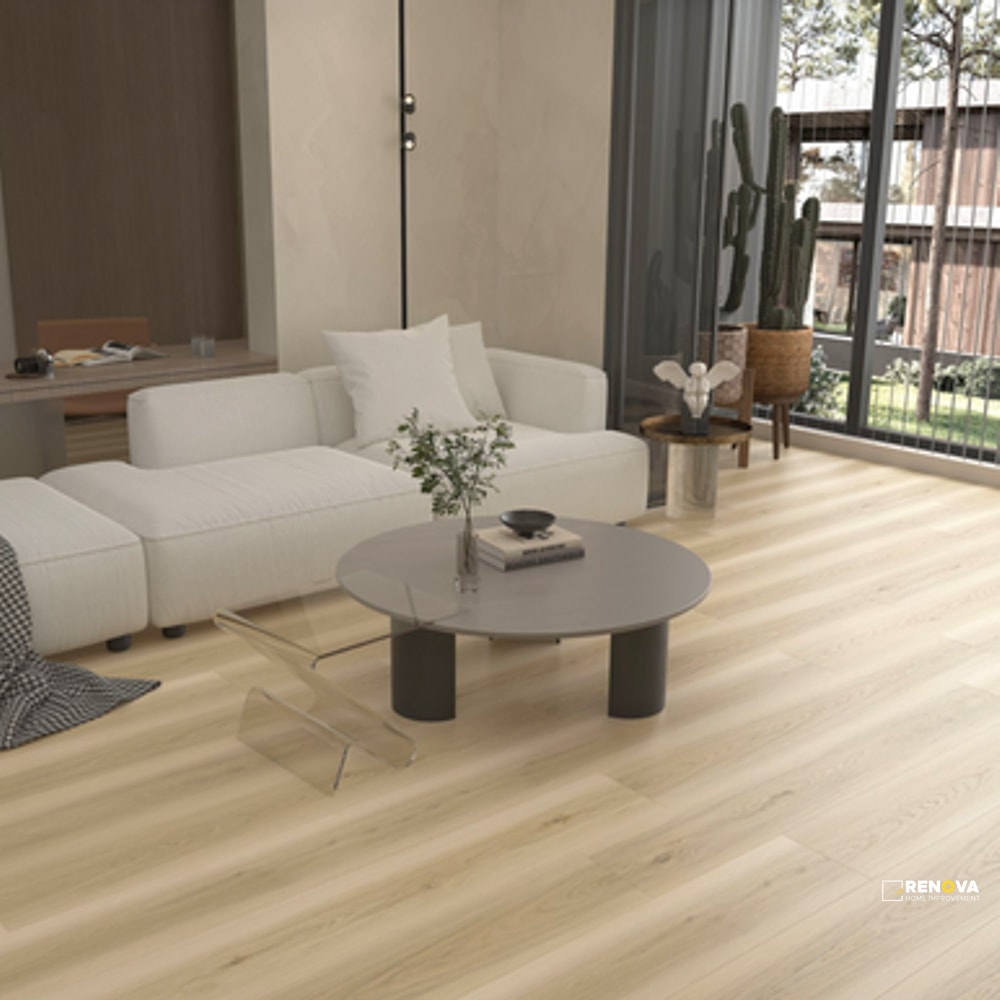

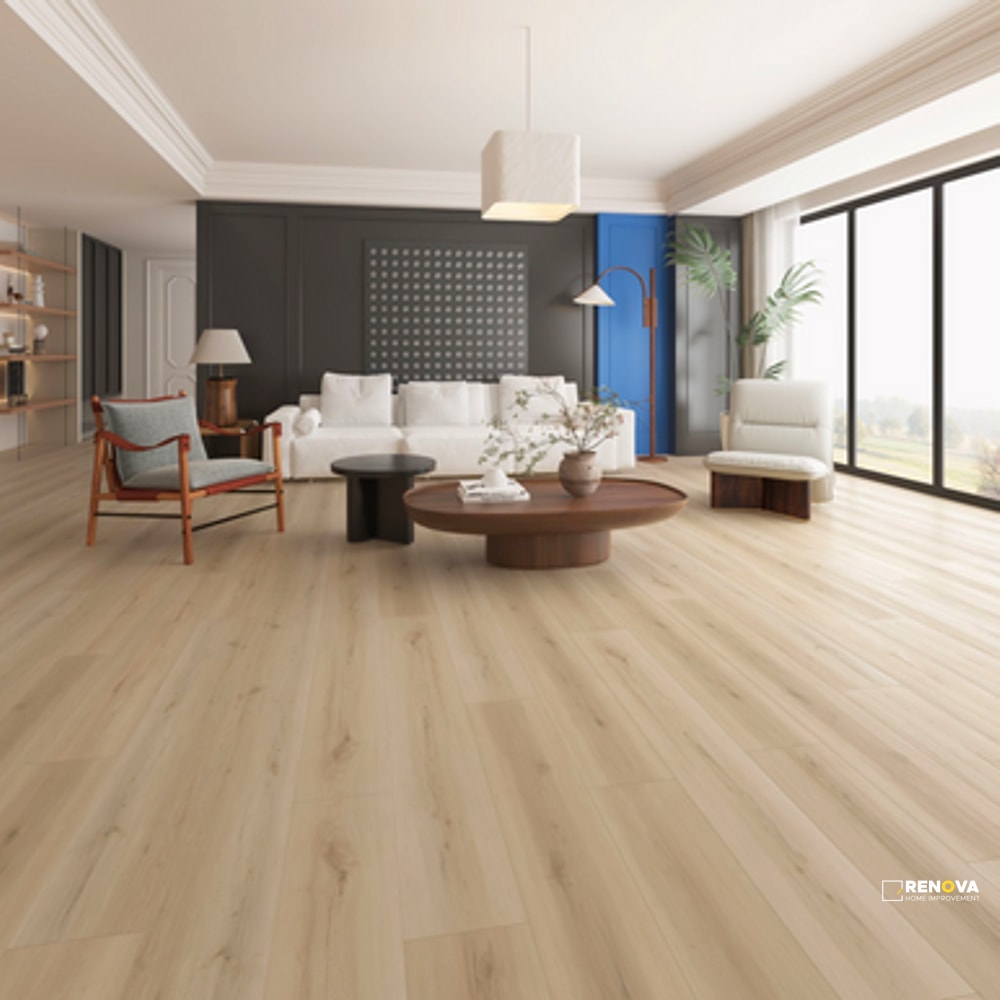

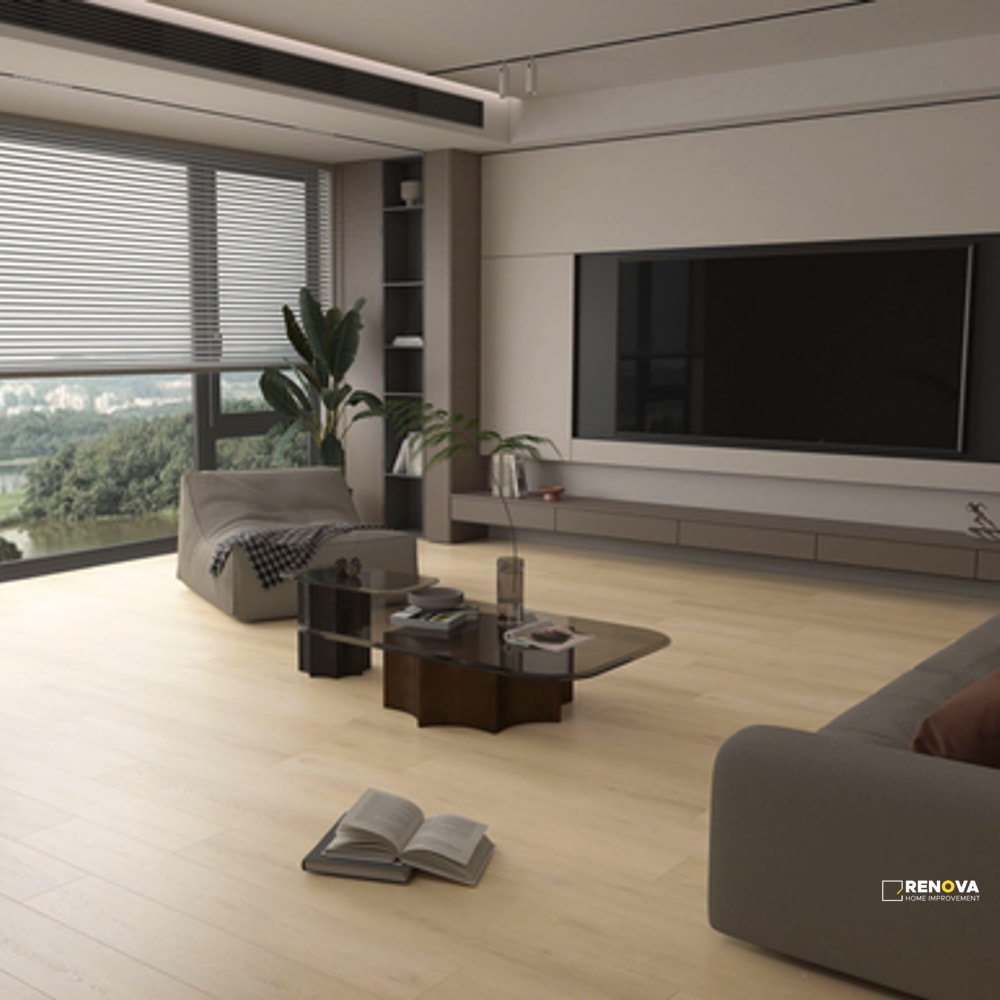

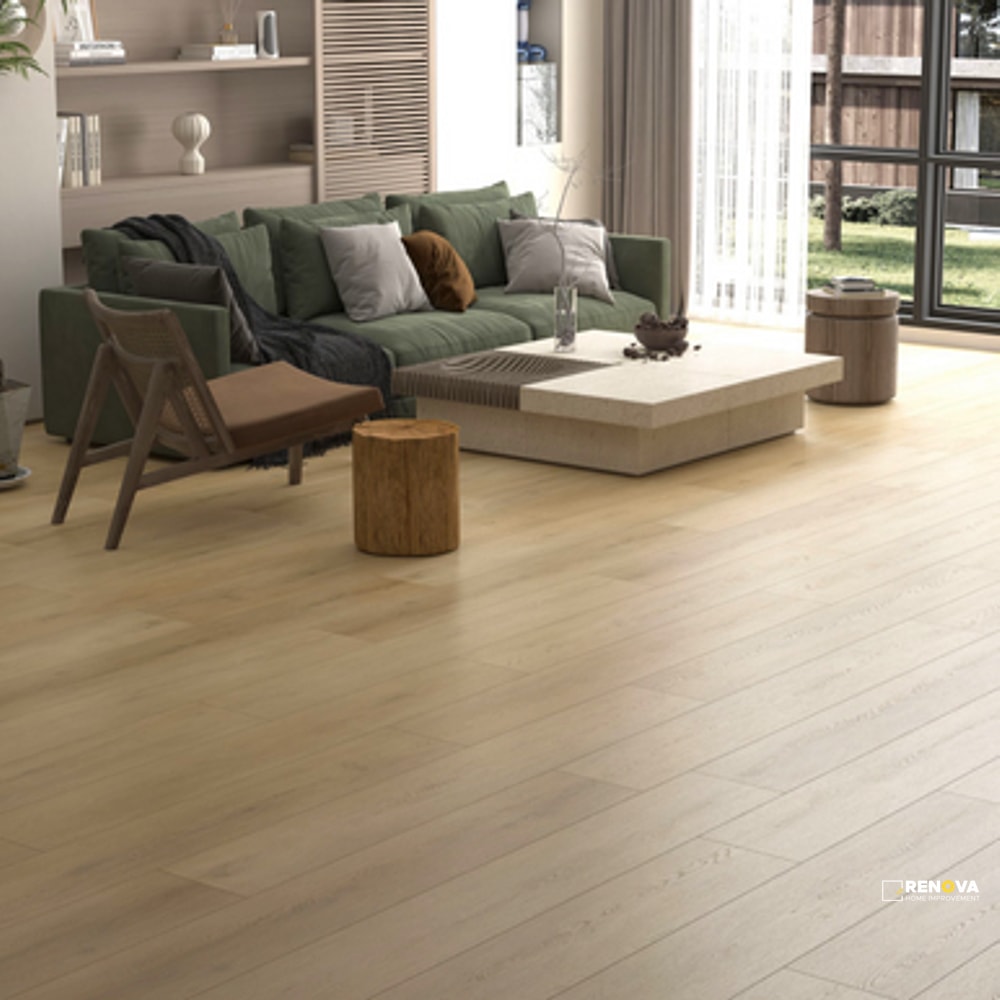

STONEWOOD FLOORS QUEENSBURY 9MM EIR EMBOSSED W/ ATTACHED PAD 9.37" X 59.84"
9mm EIR embossed SPC with attached pad
Selected Color: CASTLEWOOD
Technical Specifications
Construction: Rigid core laminate with EIR (Embossed in Register) surface texture aligned to wood grain pattern. 9mm total thickness including attached underlayment pad. Plank dimensions: 9.37 inches wide x 59.84 inches long.
Core: Stone Polymer Composite (SPC) - limestone-filled PVC composite. Provides dimensional stability and impact resistance.
Surface: High-definition digital print with embossed texture. Wear layer thickness not specified in data.
Backing: Integrated IXPE foam pad, 2-3mm thick, provides sound reduction and minor subfloor tolerance.
Edge Detail: Standard micro-bevel or painted bevel edges for click-lock installation.
Water Resistance: 100% waterproof core suitable for moisture-prone areas.
Application & Performance
Primary Use: Residential flooring over concrete, plywood, or existing vinyl. Attached pad eliminates separate underlayment.
Performance: SPC core resists expansion/contraction in humid environments. EIR texture provides slip resistance. Click-lock system allows floating installation over uneven substrates up to 5mm variance.
Limitations: Not suitable for glue-down applications. Avoid direct standing water exposure on surface. Subfloor must be flat within 3/16 inch over 10 feet.
Load Rating: Residential traffic. Light commercial use possible in low-traffic areas.
Application Suitability
Save materials as you browse. We’ll include your saved selections when you request an estimate.
Specifications
Detailed Specifications & Suitability
| Property | Value |
|---|---|
| Thickness | 9mm total w/ attached pad |
| Plank Size | 9.37" x 59.84" |
| Coverage | 23.36 SF per case |
| Core Material | Stone Polymer Composite (SPC) |
| Surface | EIR Embossed |
| Backing | Integrated IXPE foam pad |
| Water Resistance | 100% waterproof core |
| Edge Type | Micro-bevel |
| Installation | Floating click-lock |
| Colors Available | 6+ variants |
| Brand | STONEWOOD FLOORS |
